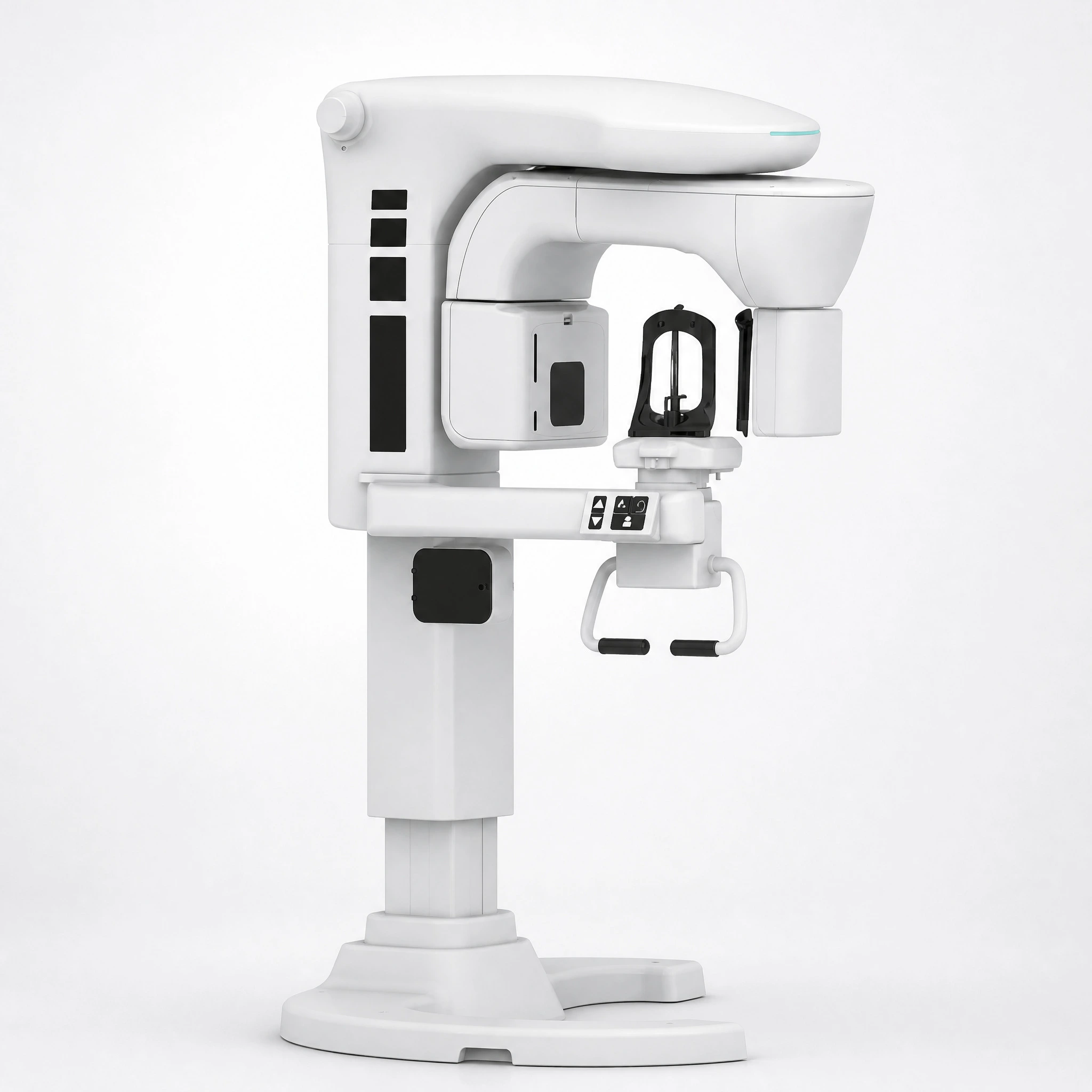

BRIGHT MOON 3.0 All-in-One Dental CBCT System
Product Introduction

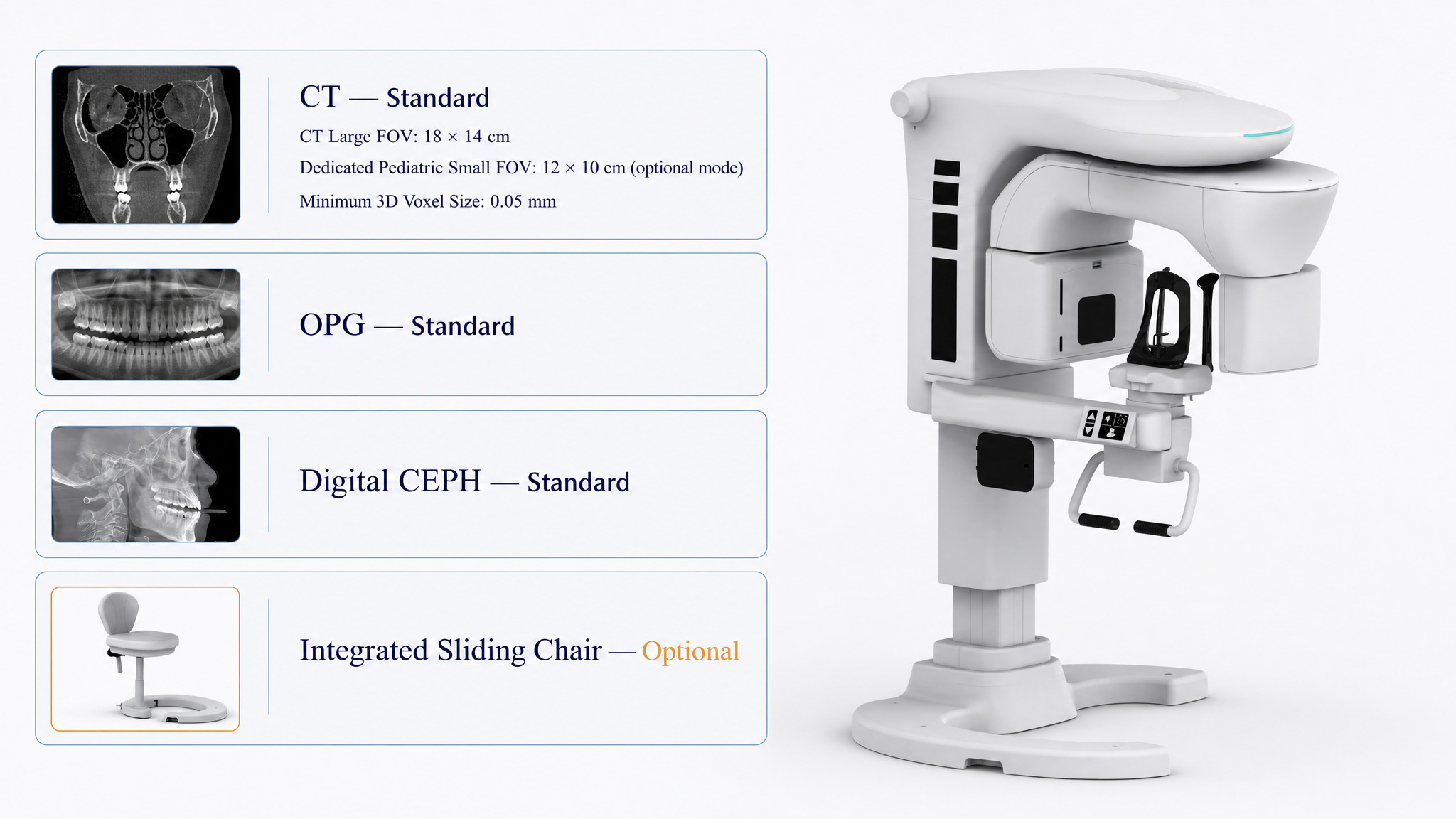

BRIGHT MOON 3.0 is an all-in-one dental CBCT system selected by SYRJ Medical for imaging workflow planning. The brochure lists CT, OPG and Digital CEPH as standard imaging modes, together with an optional integrated sliding chair configuration.
The system provides an 18 × 14 cm large CT FOV and an optional 12 × 10 cm pediatric small-FOV mode. Its listed configuration includes workstation hardware, image management software, post-processing software, orthodontic software and image acquisition software.
Quick Details
| Product Name | BRIGHT MOON 3.0 All-in-One Dental CBCT System |
| Model | BRIGHT MOON 3.0 |
| Standard Imaging Modes | CT, OPG, Digital CEPH |
| Optional Configuration | Integrated Sliding Chair |
| Large CT FOV | 18 × 14 cm |
| Minimum 3D Voxel Size | 0.05 mm |
| Shortest Scan | 8 seconds |
Specification
| Pediatric Small-FOV Mode | 12 × 10 cm, optional |
| Listed Adult Setting | 90 kV / 4 mA |
| Listed Pediatric Setting | 70 kV / 2 mA |
| Main Unit | Including electrical control system, 1 set |
| Rotating Arm and Column | 1 set |
| Fixed Arm with Control Buttons | 1 set |
| Panoramic, CT, and Cephalometric Detectors | 1 set |
| Software | Orthodontic, post-processing, image management and image acquisition software, 1 set each |
Frequently Asked Questions
Which imaging modes are standard?
The brochure lists CT, OPG and Digital CEPH as standard imaging modes.
Is the integrated sliding chair included as standard?
No. The brochure marks the integrated sliding chair as optional.
What CT FOV is listed?
The brochure lists an 18 × 14 cm large FOV and an optional 12 × 10 cm dedicated pediatric small-FOV mode.
What is the listed minimum 3D voxel size?
The minimum 3D voxel size listed in the brochure is 0.05 mm.
What software is included in the configuration?
The listed configuration includes orthodontic, post-processing, image management and image acquisition software.
