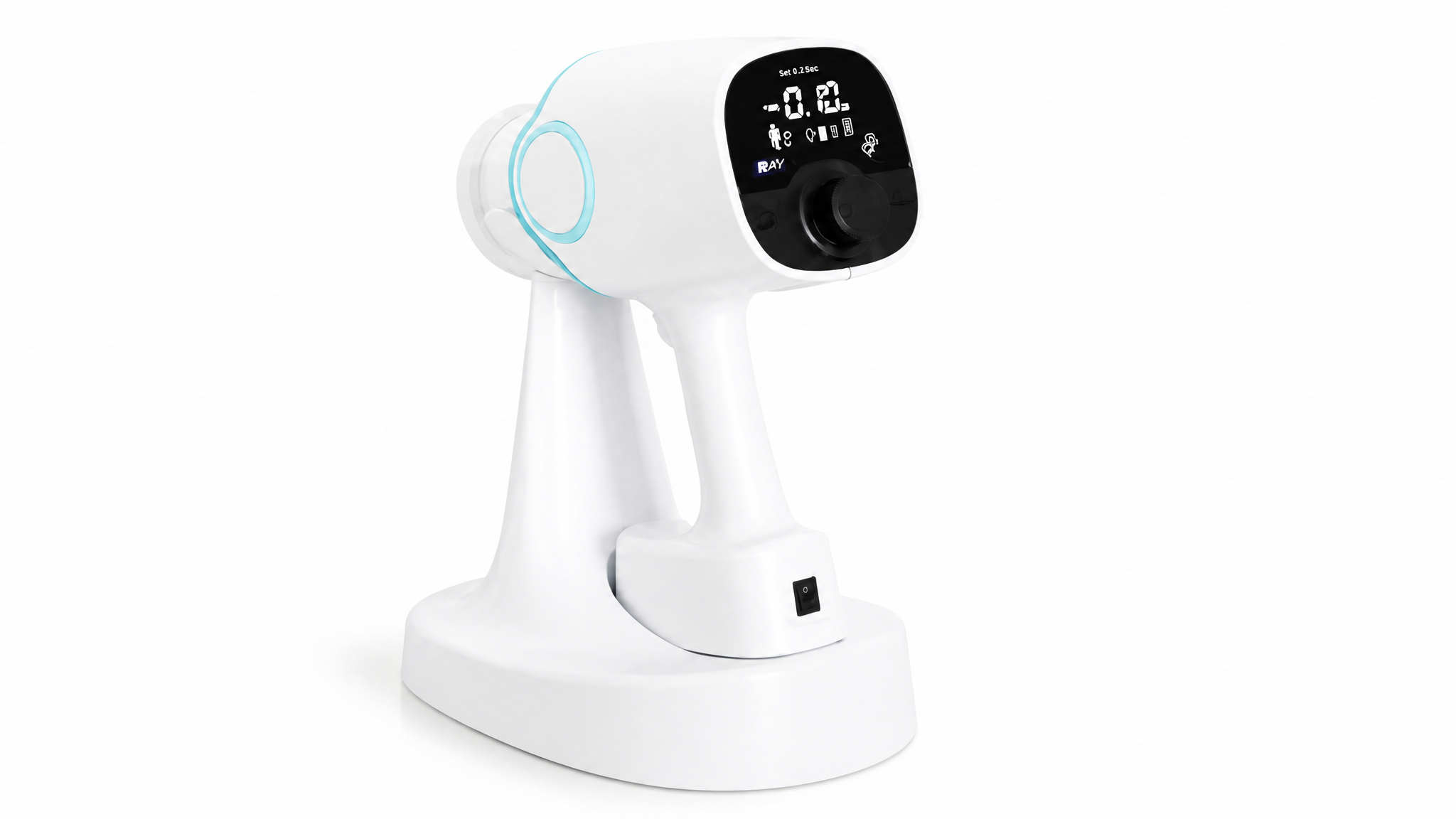

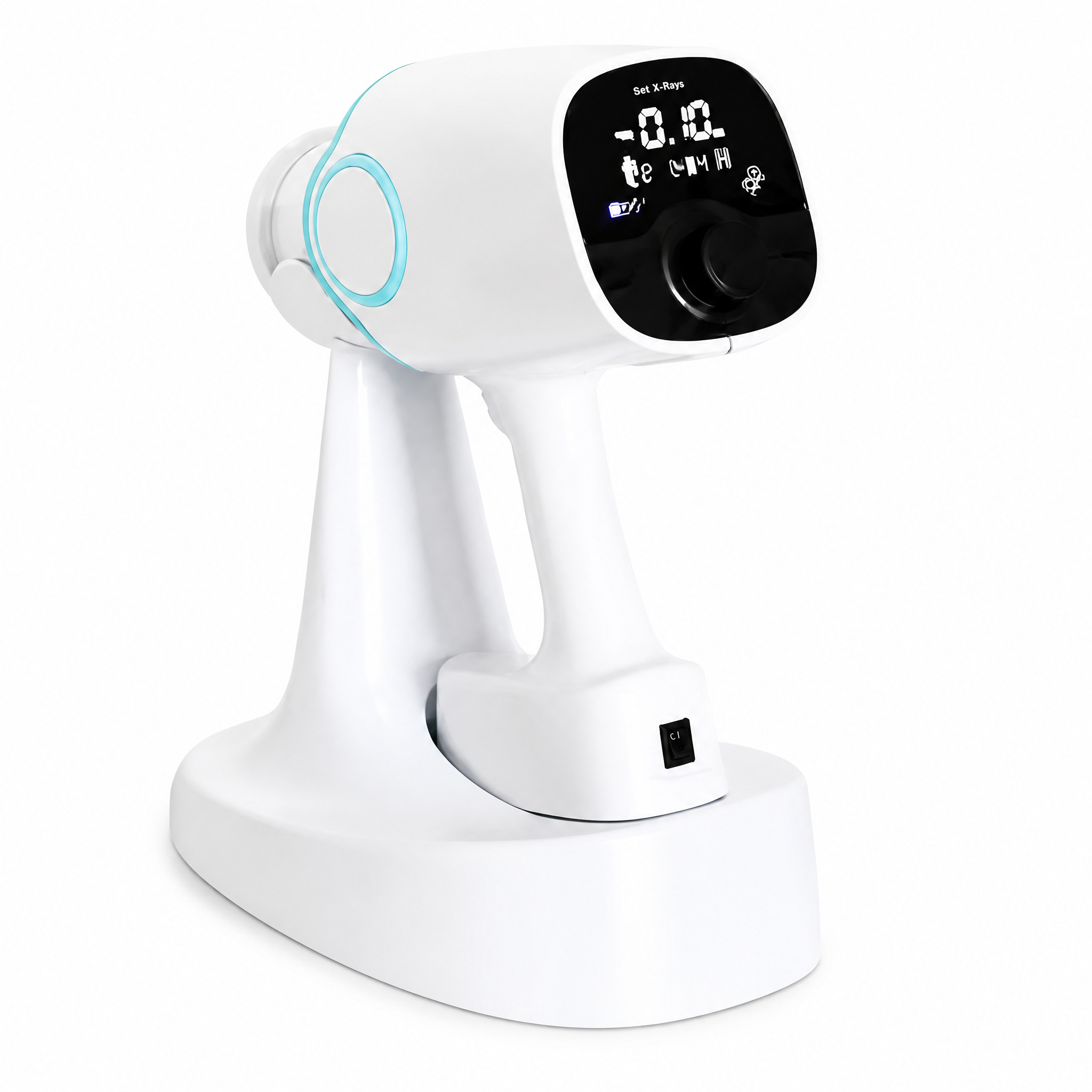

Portable Dental X-Ray Unit
Product Introduction
The MSLK28 is a portable dental X-ray unit designed for intraoral dental imaging workflows. It operates with a tube voltage of 60 kV (DC) and a tube current of 2 mA, with an adjustable exposure time of 0.01 to 2 s and a focal spot of 0.4 mm. The lightweight 2.8 kg unit runs on AC 100-240 V, 50/60 Hz power at 80 VA and consumes less than 0.5 W in standby mode. Leakage radiation is below 20 μGy/h measured at a distance of 1 meter. The supplied imaging software is compatible with Windows 7 through Windows 10. Please review the confirmed product configuration and technical documentation before ordering.

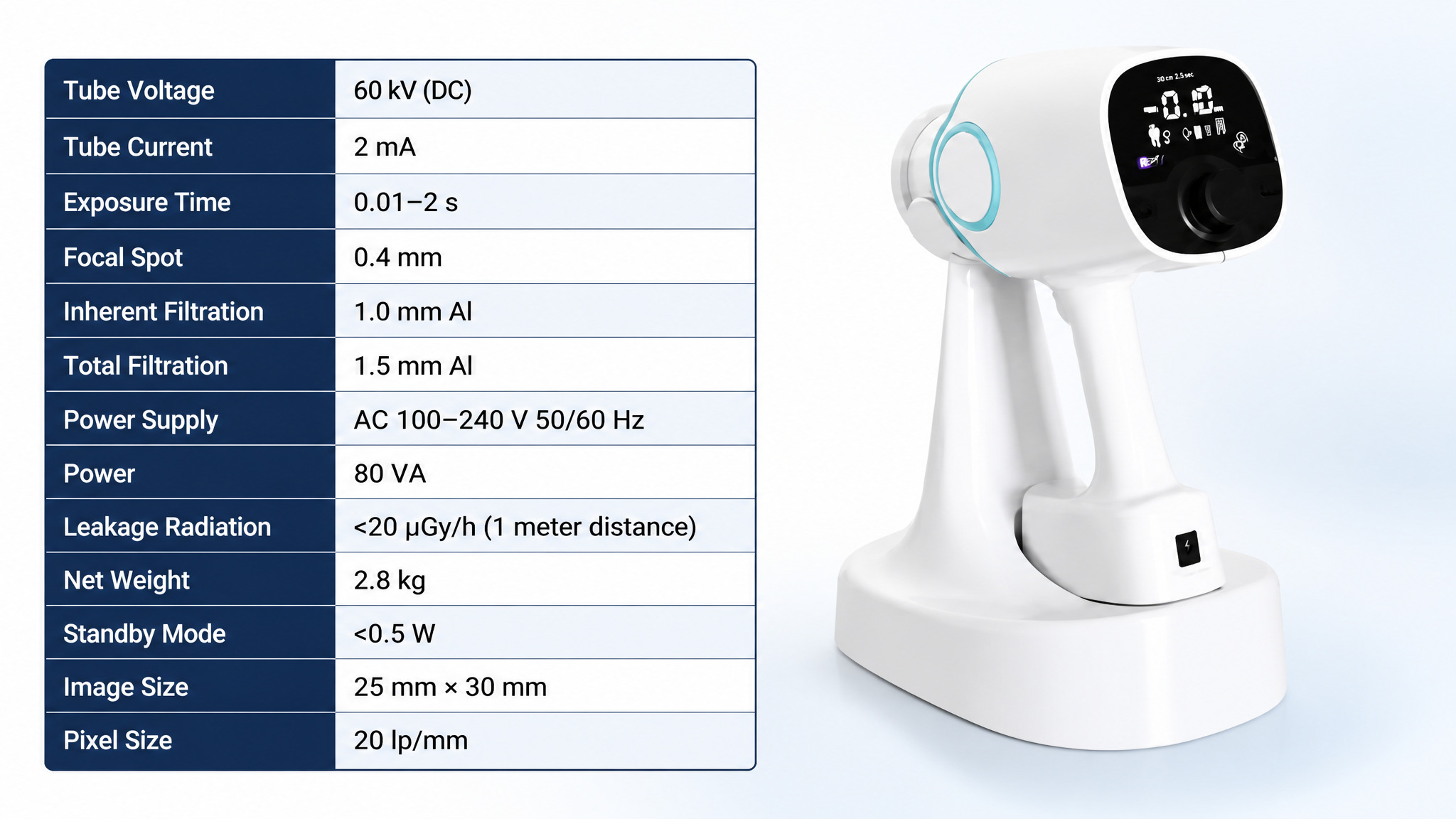

Specification
| Tube Voltage | 60 kV (DC) |
| Tube Current | 2 mA |
| Exposure Time | 0.01-2 s |
| Focal Spot | 0.4 mm |
| Inherent Filtration | 1.0 mm Al |
| Total Filtration | 1.5 mm Al |
| Power Supply | AC 100-240 V 50/60 Hz |
| Power | 80 VA |
| Leakage Radiation | <20 μGy/h (1 meter distance) |
| Net Weight | 2.8 kg |
| Standby Mode | <0.5 W |
| Image Size | 25 mm × 30 mm |
| Pixel Size | 20 lp/mm |
| Packaging Size | 41 cm × 36 cm × 19 cm |
| Packaging Net Weight | 3.6 kg |
| Software Compatibility | Windows 7-Windows 10 |
FAQ
1. What are the rated tube voltage and tube current of the MSLK28?
The MSLK28 operates at 60 kV (DC) tube voltage and 2 mA tube current, with an adjustable exposure time of 0.01-2 s and a focal spot of 0.4 mm.
2. What is the net weight of the MSLK28 and what are its packaging details?
The unit has a net weight of 2.8 kg. The packaging size is 41 cm × 36 cm × 19 cm and the packaging net weight is 3.6 kg.
3. What power supply does the MSLK28 require?
The MSLK28 operates on AC 100-240 V, 50/60 Hz power with a rated power of 80 VA. Standby mode power consumption is below 0.5 W.

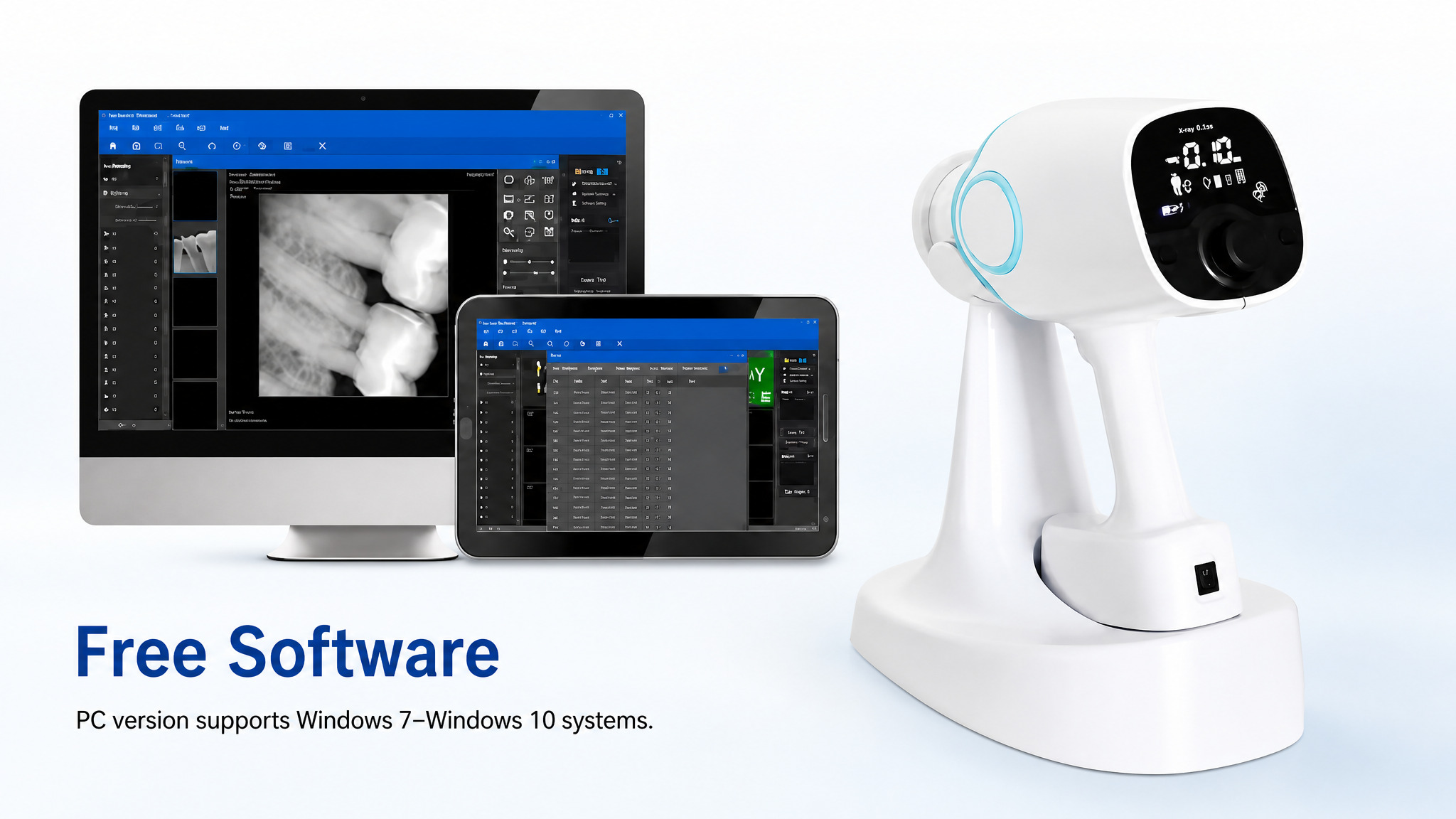

4. Which operating systems does the MSLK28 software support?
The supplied imaging software is compatible with Windows 7 through Windows 10 operating systems.
5. What is the leakage radiation level of the MSLK28?
Leakage radiation is below 20 μGy/h measured at a distance of 1 meter. Inherent filtration is 1.0 mm Al and total filtration is 1.5 mm Al.
