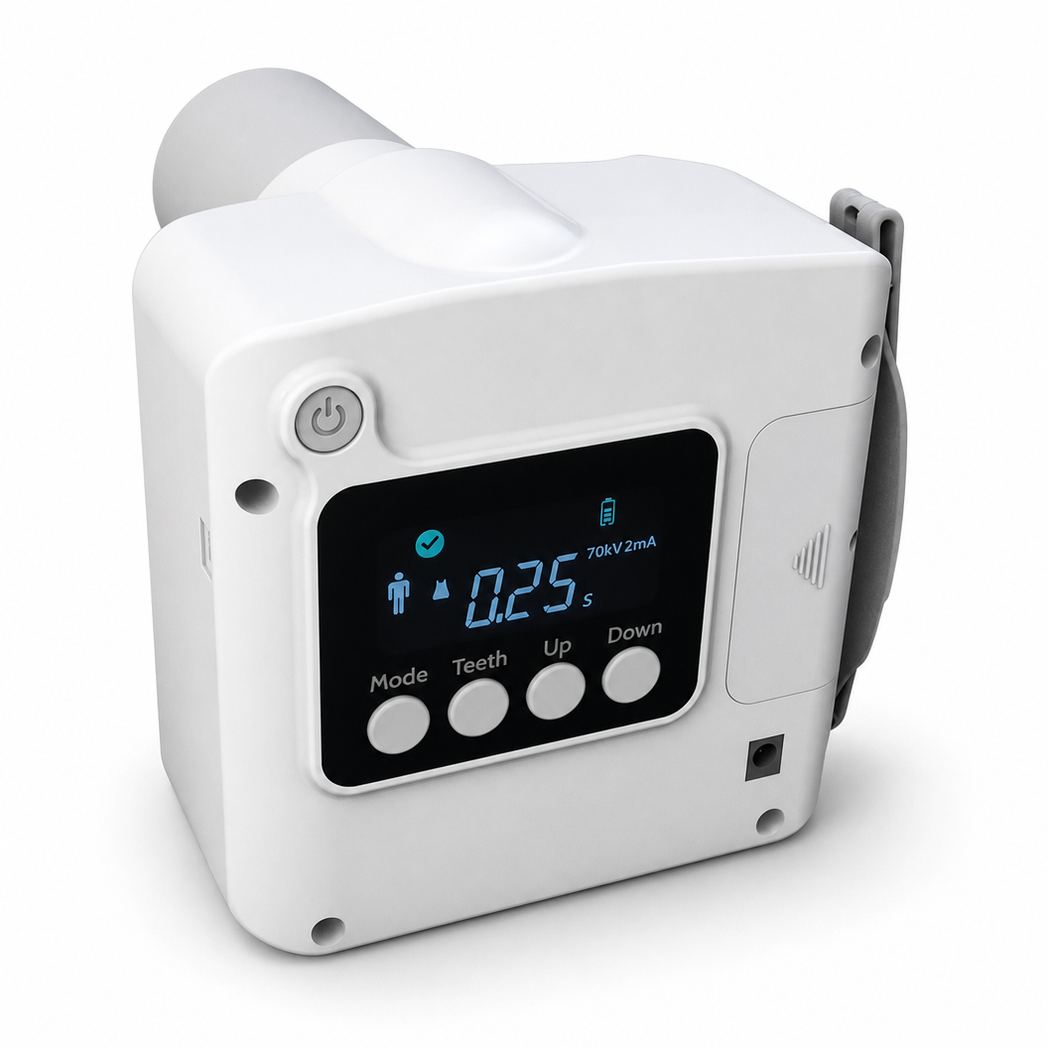

MSLDX03 Dental X-ray Machine
MSLDX03 dental X-ray machine with KL11 tube head for dental imaging applications. Verified specifications: 70 kV ±10% tube voltage; 2 mA ±20% tube current; 100–240 V charge input; 50–60 Hz frequency; 12.5° anode angle; 0.4 mm focus; 0.04–2.0 s exposure time; leak emissivity ≤0.25 mGy/h at 1 m; relative humidity 30–75% RH; weight GW 4 kg / NW 1.9 kg; packing size 335 × 250 × 240 mm. Packing size is not an installation dimension.
Sale Service
Installation Policy
Installation Services: Support network remote free installation
Warranty Policy
Warranty Service: Provide
Warranty Period: 12 Months
Warranty Mode:
- Repair service: the customer can send it to the authorized repair point designated by our company for free repair (free of labor and material costs). The customer shall bear the round-trip freight and customs clearance fees.
- Repair service: customers can enjoy free repair service at the authorized repair point designated by our company.
- Online maintenance: our company provides online guidance and accessories and sends them to customers free of charge. (Individual countries may have to bear customs clearance fees or tariffs.)
Return Policy
Return Service: Support
Return Conditions: Quality problem; Transport package damage; Inconformity with the real object
Return Period: 15 days from delivery date
Exchange Policy
Exchange Service: Support
Exchange Conditions: Quality problem; Transport package damage; Inconformity with the real object
Replacement Period: 15 days, calculated from the signing date
Quick Details
Product name: Dental X-Ray Machine
Model number:MSLDX03
Tube head:KL11
Tube voltage: 70 kV ±10%
Tube current: 2 mA ±20%
Focus: 0.4 mm
Exposure time: 0.04–2.0 s
Charge input: 100–240 V
Frequency: 50–60 Hz
Anode angle:12.5°
Leak emissivity: ≤0.25 mGy/h at 1 meter
Relative humidity:30%RH–75%RH
Net weight: 1.9 kg
Gross weight: 4 kg

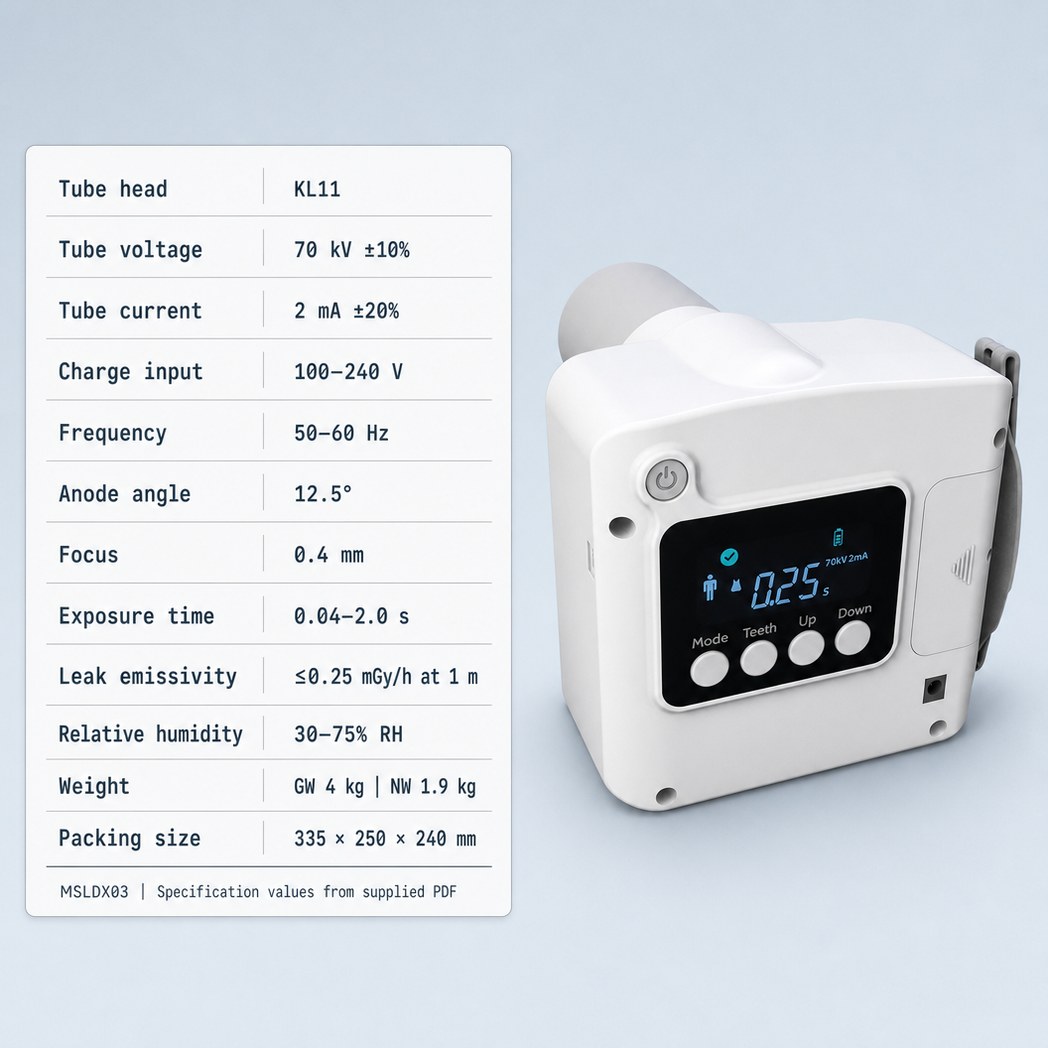

Specification
| Tube head | KL11 |
|---|---|
| Tube voltage | 70 kV ±10% |
| Tube current | 2 mA ±20% |
| Charge input voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Anode angle | 12.5° |
| Focus | 0.4 mm |
| Exposure time range | 0.04–2.0 s |
| Leak emissivity | ≤0.25 mGy/h at 1 meter |
| Relative humidity | 30%RH–75%RH |
| Gross / net weight | 4 kg / 1.9 kg |
| Packing size | 335 × 250 × 240 mm |

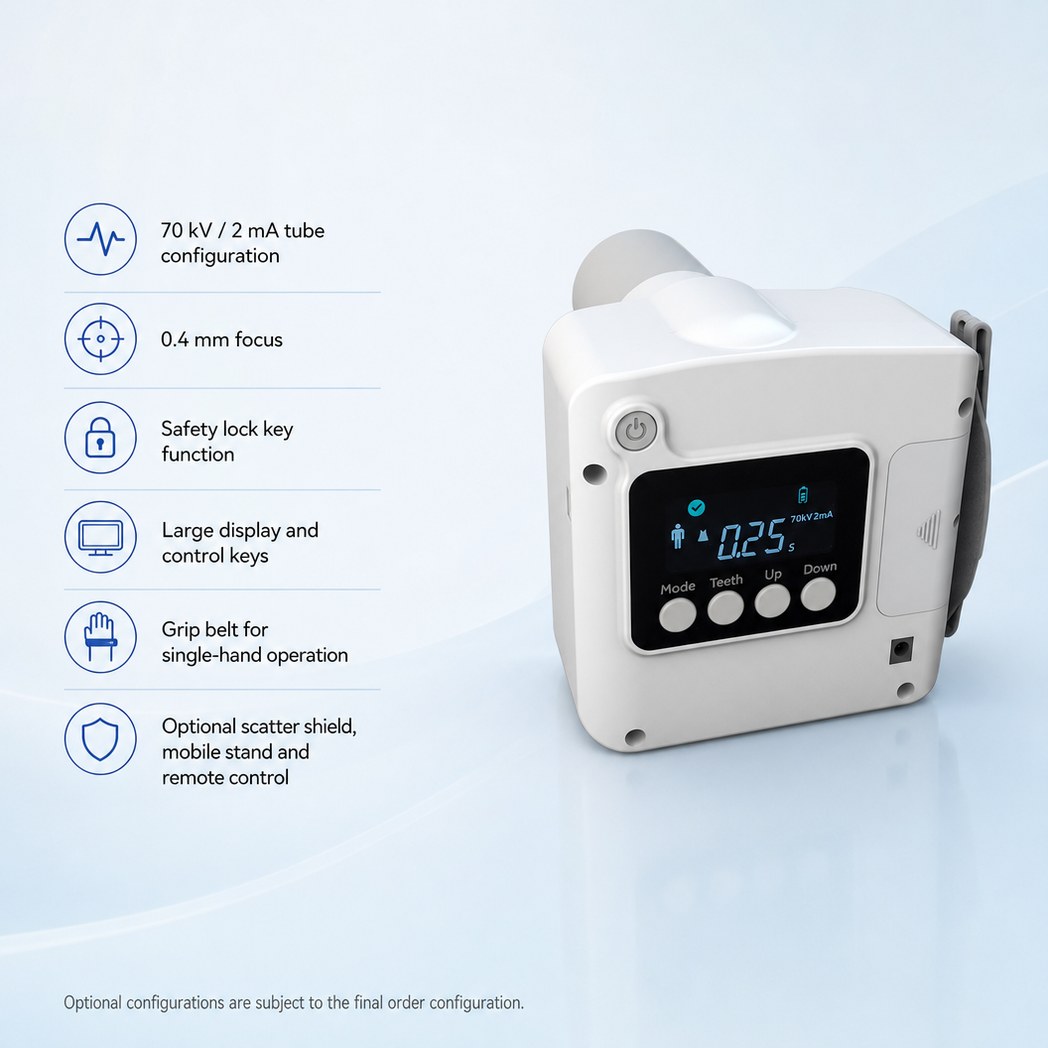

| Optional configurations | Lead-bearing scatter shield; mobile stand; remote control |
| Certification statement | The PDF Features page states “CE certificated”; verify original documents before ordering. |
Specifications are transcribed from the MSLDX03 PDF. Please verify the final configuration and technical documents before ordering.
