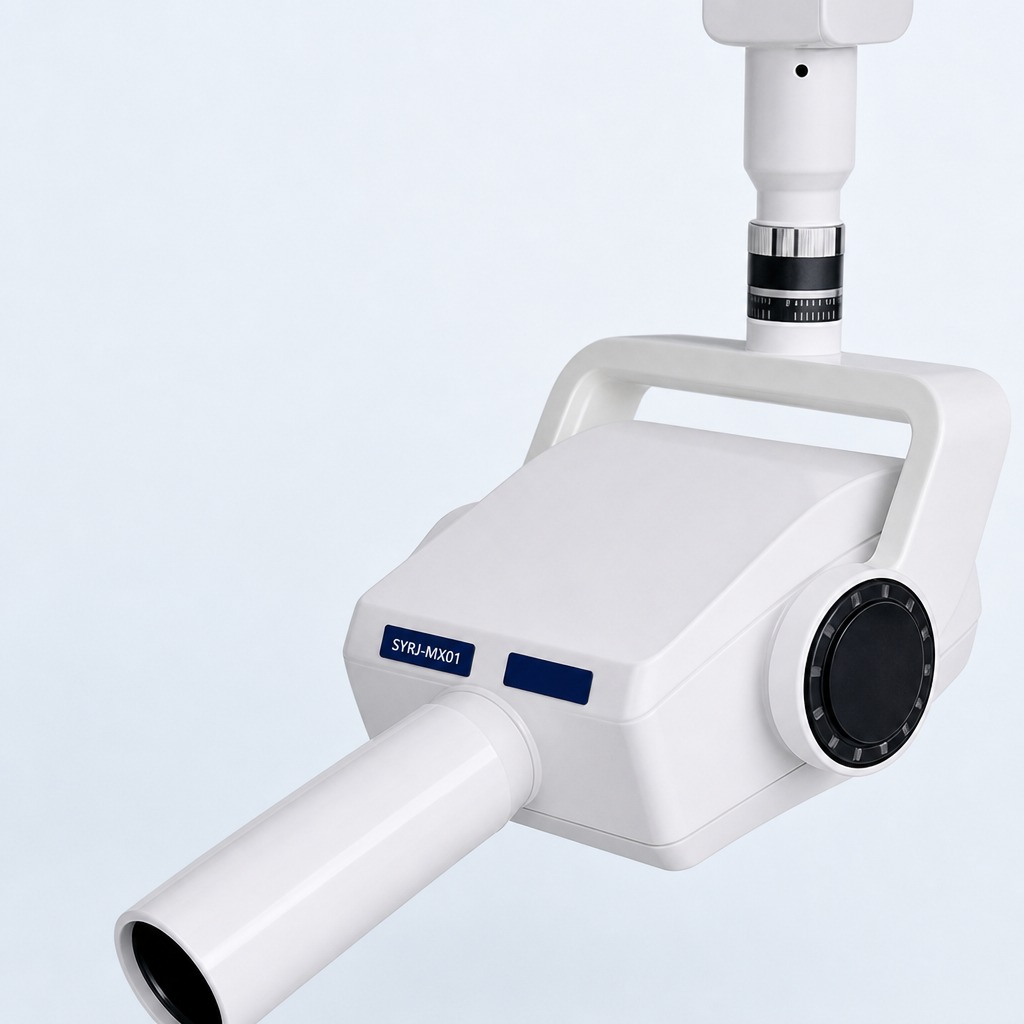

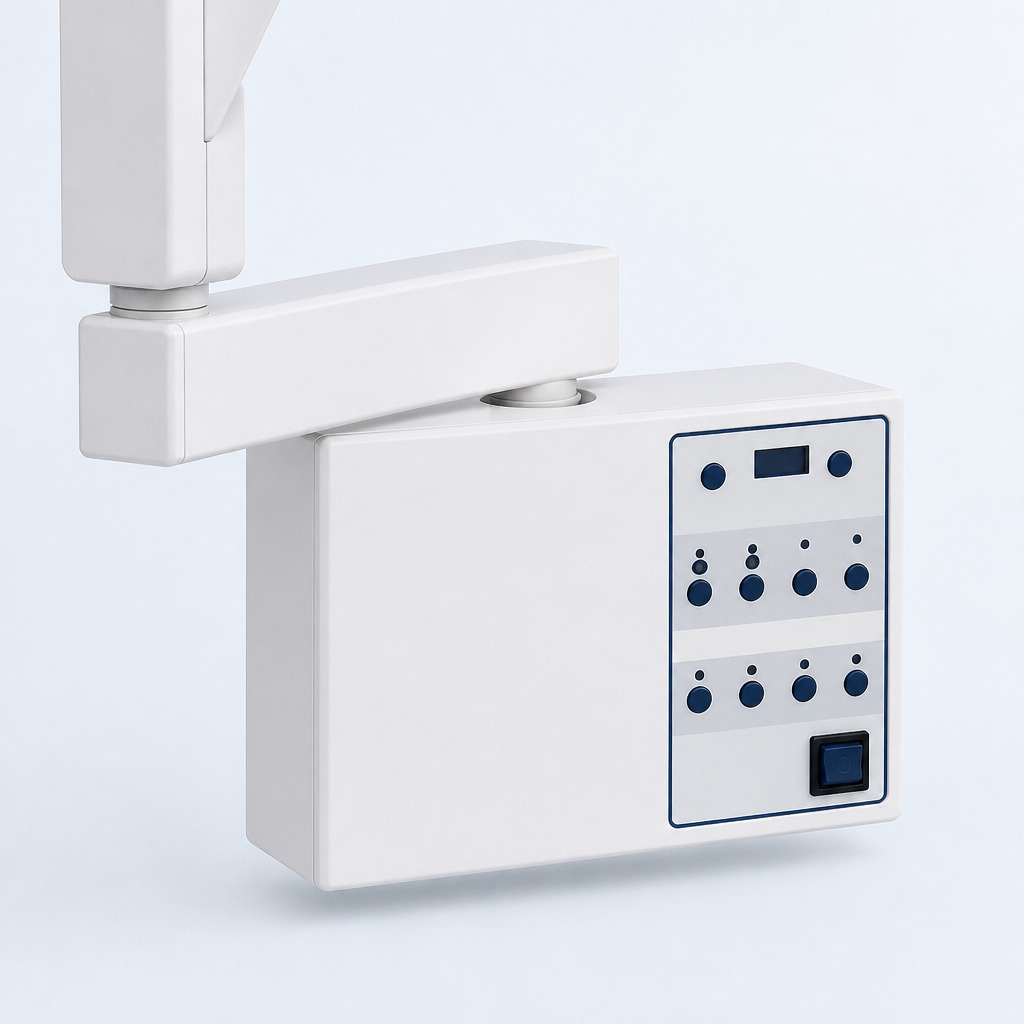

SYRJ-MX01 Wall Mount Dental X-Ray Machine
SYRJ-MX01 is a wall mount dental X-ray machine selected by SYRJ Medical for dental clinic installation projects. This Wall Mount Dental X-Ray Machine model is designed for wall-mounted placement in dental clinics, and its source-verified specifications support product evaluation and integration planning.
The following sections show the product images of model SYRJ-MX01, the verified specification table, compliance information, sale service terms, and frequently asked questions for this dental X-ray equipment.

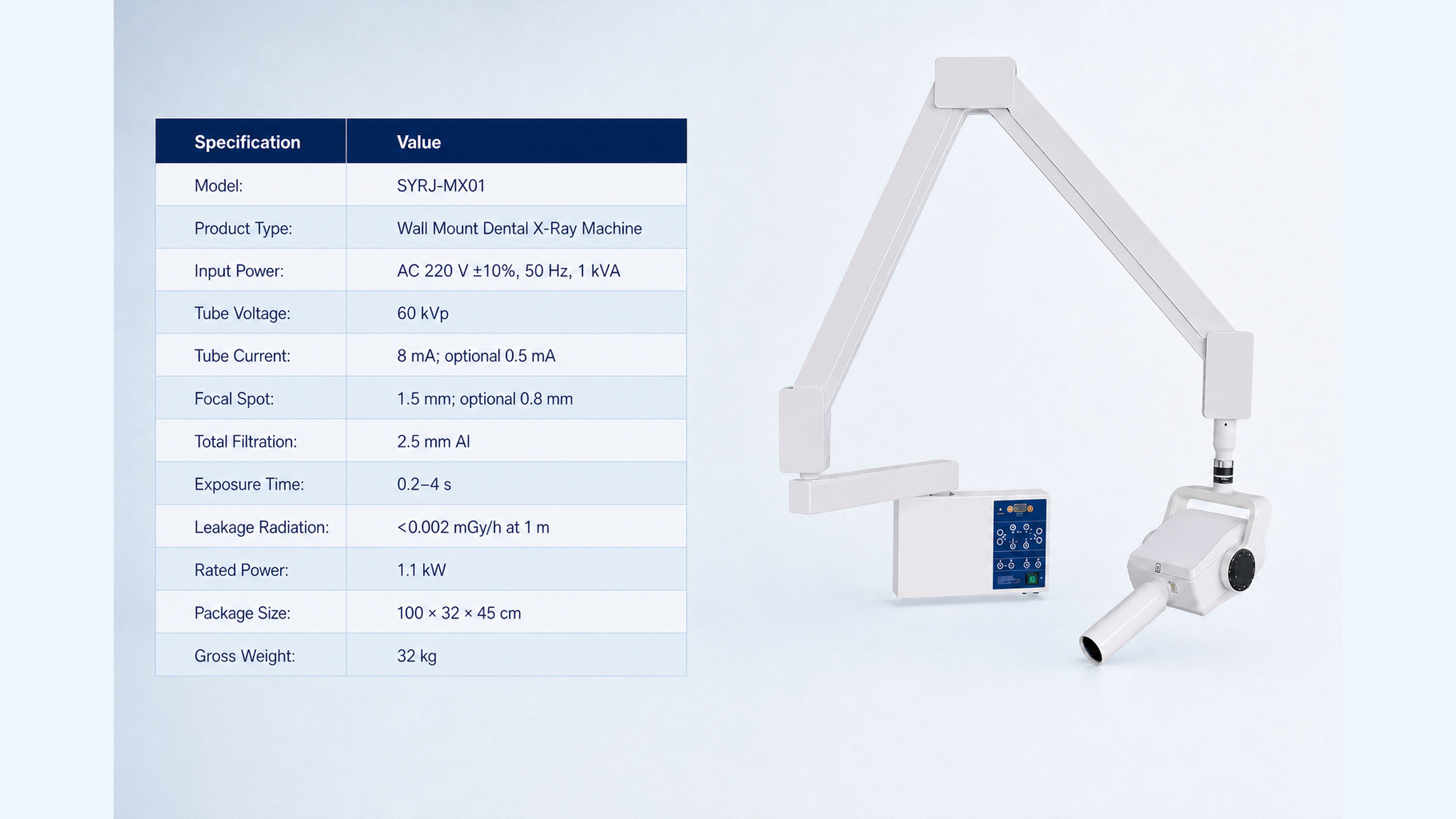

Specification
| Model | SYRJ-MX01 |
| Product Type | Wall Mount Dental X-Ray Machine |
| Input Power | AC220V ±10%, 50Hz, 1kVA |
| Tube Voltage | 60kVp |
| Tube Current | 8mA (optional 0.5mA) |
| Focal Spot | 1.5mm (optional 0.8mm) |
| Total Filtration | 2.5mmAl |
| Exposure Time | 0.2–4s |
| Leakage Radiation | <0.002mGy/h at 1m |
| Rated Power | 1.1kW |
| Package Size | 100×32×45cm |
| Gross Weight | 32kg |

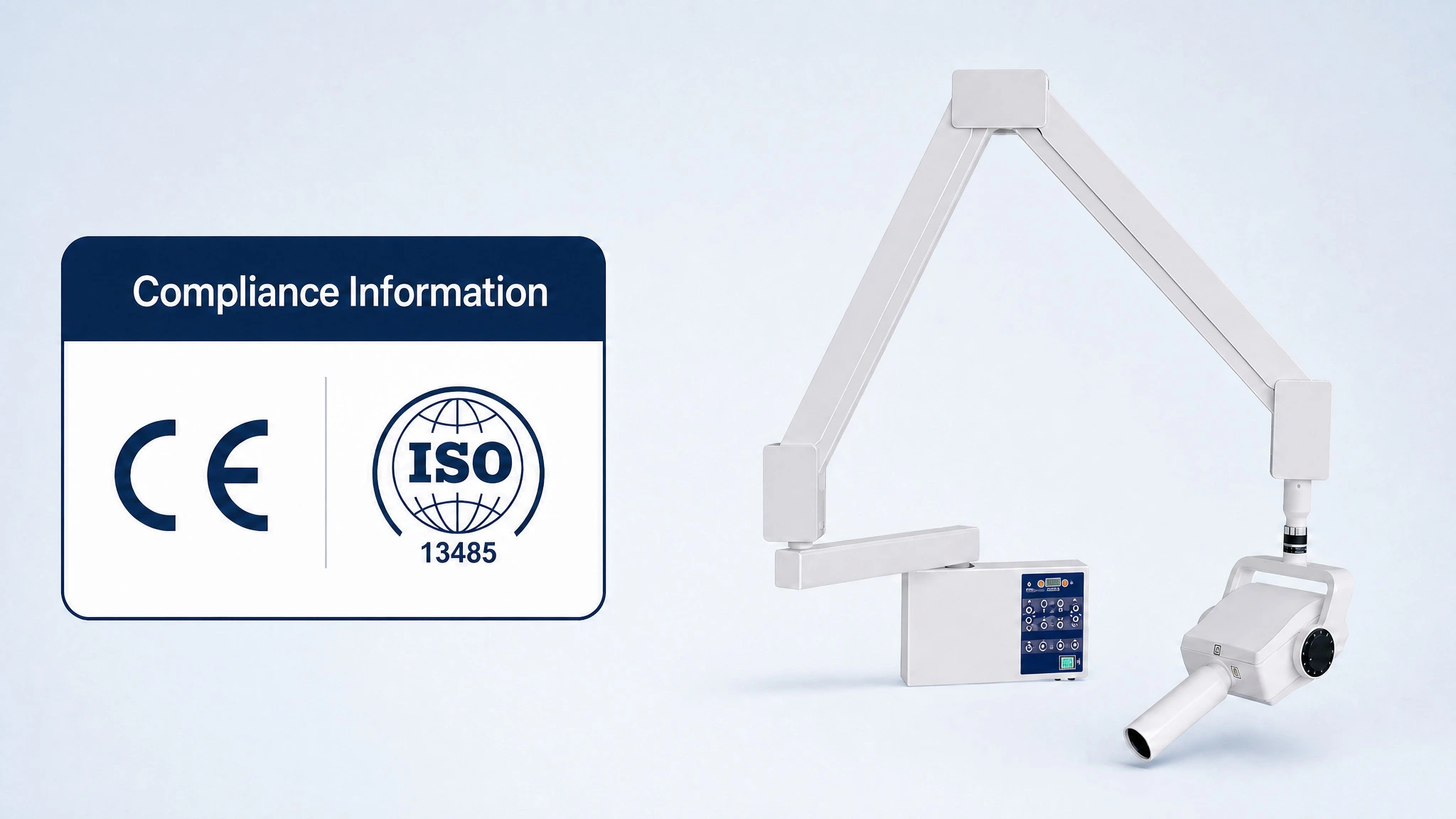

Compliance
CE and ISO 13485 compliance information is provided for product evaluation. This page is not a certificate.
Sale Service
| Installation | None |
| Warranty | None |
| Return | None |
| Exchange | None |
FAQ
Q1: What is SYRJ-MX01?
SYRJ-MX01 is a Wall Mount Dental X-Ray Machine model selected by SYRJ Medical for dental clinic installation projects. Model number: SYRJ-MX01. Product type: Wall Mount Dental X-Ray Machine.
Q2: What input power does SYRJ-MX01 require?
The rated input power is AC220V ±10%, 50Hz, 1kVA.
Q3: What are the x-ray generation parameters of SYRJ-MX01?
Tube voltage is 60kVp; tube current is 8mA (optional 0.5mA); focal spot is 1.5mm (optional 0.8mm); total filtration is 2.5mmAl.
Q4: What exposure and radiation safety parameters apply to SYRJ-MX01?
Exposure time is 0.2–4s; leakage radiation is less than 0.002mGy/h at 1m; rated power is 1.1kW.
Q5: What are the package size and gross weight of SYRJ-MX01?
Package size is 100×32×45cm and gross weight is 32kg.
