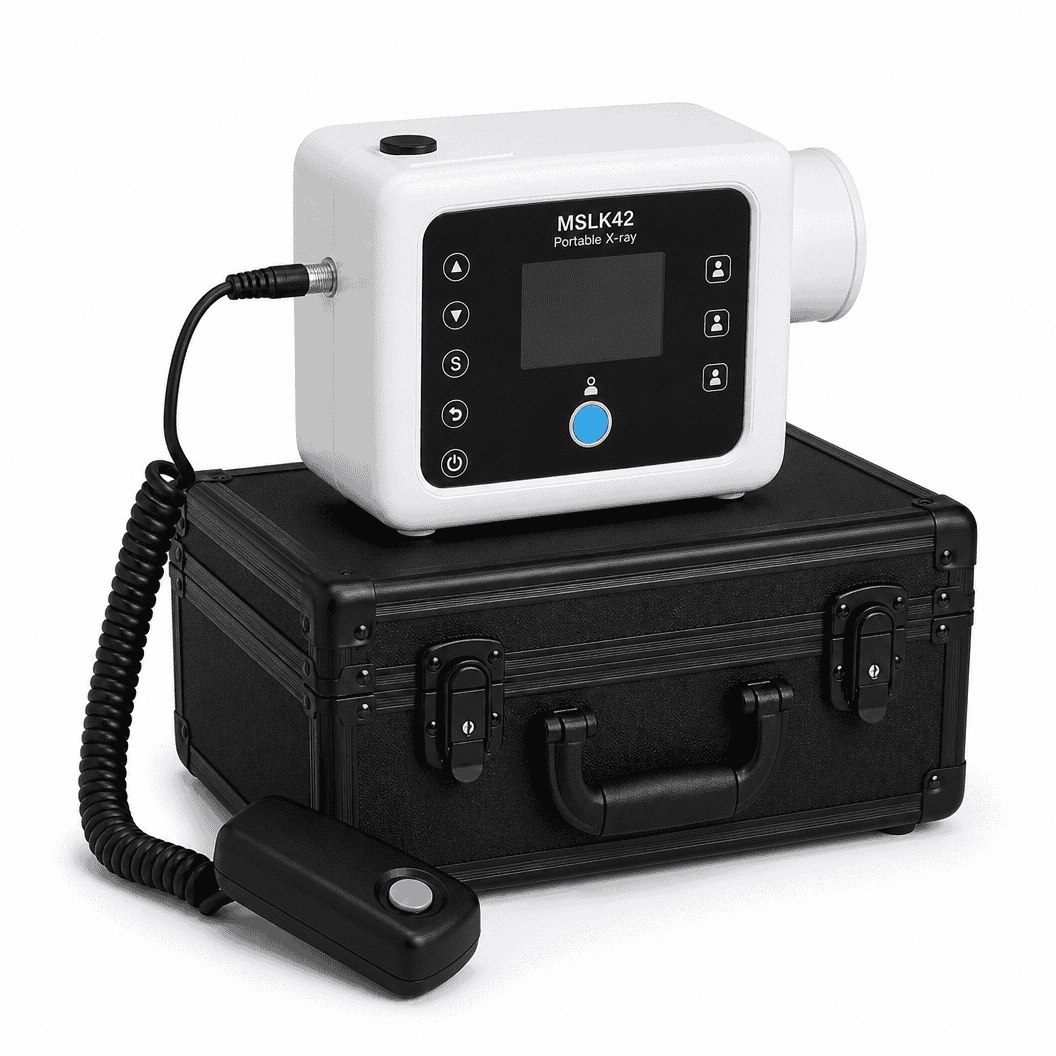

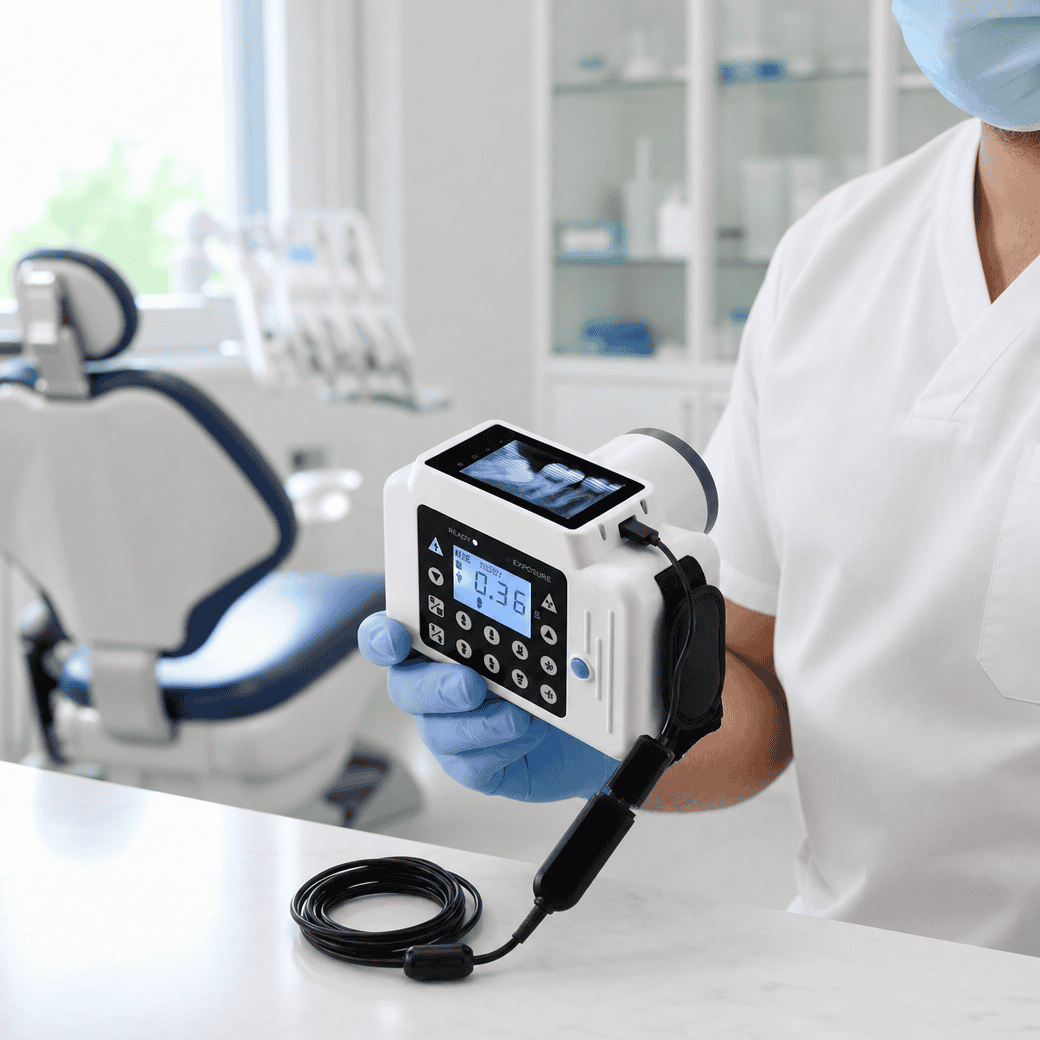

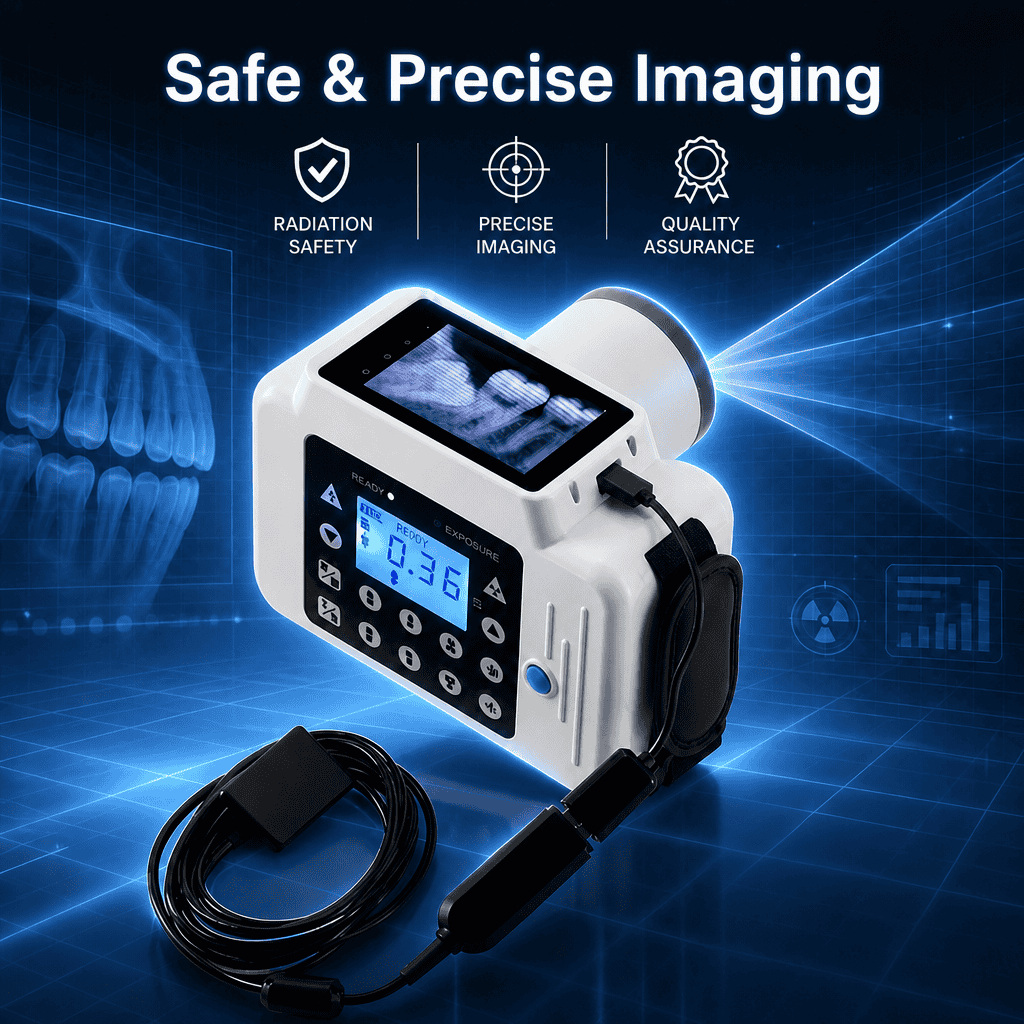

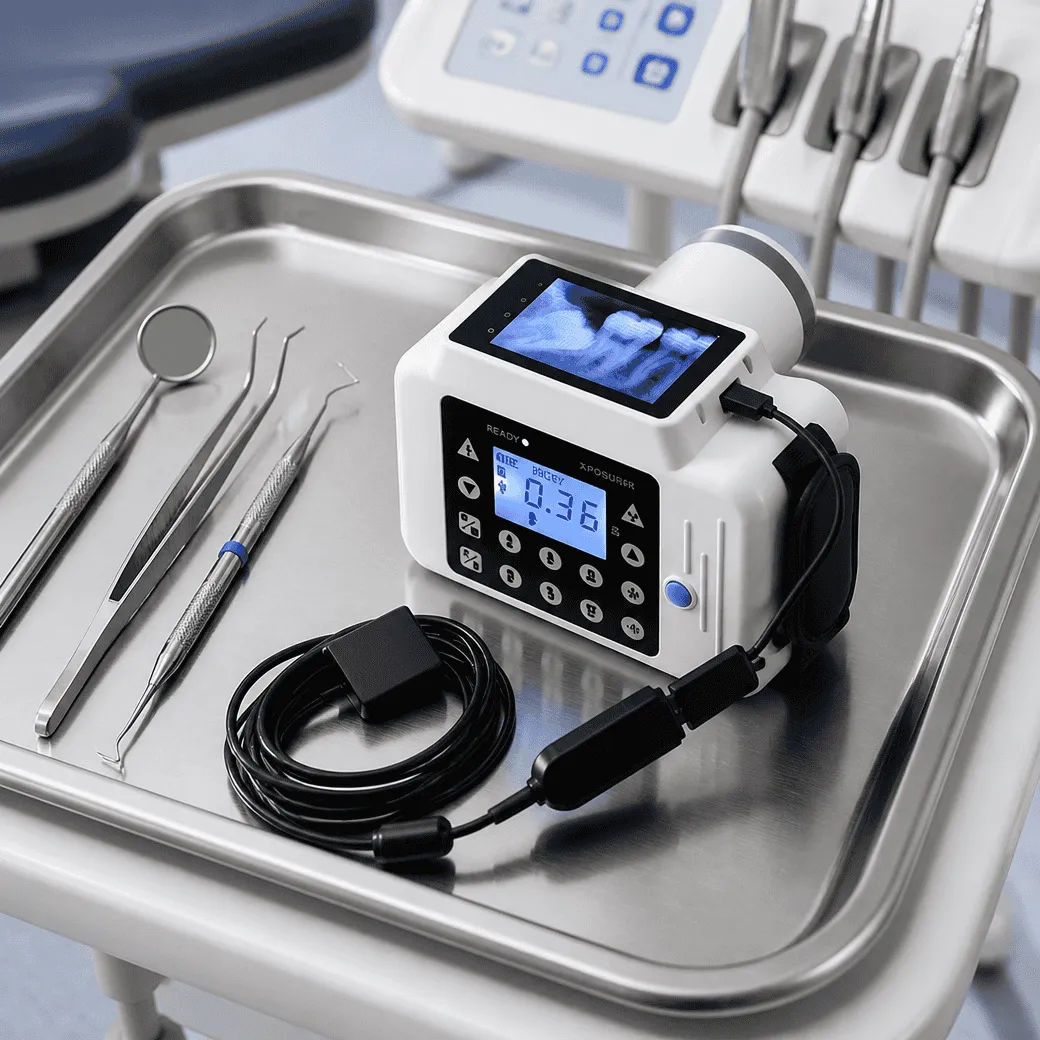

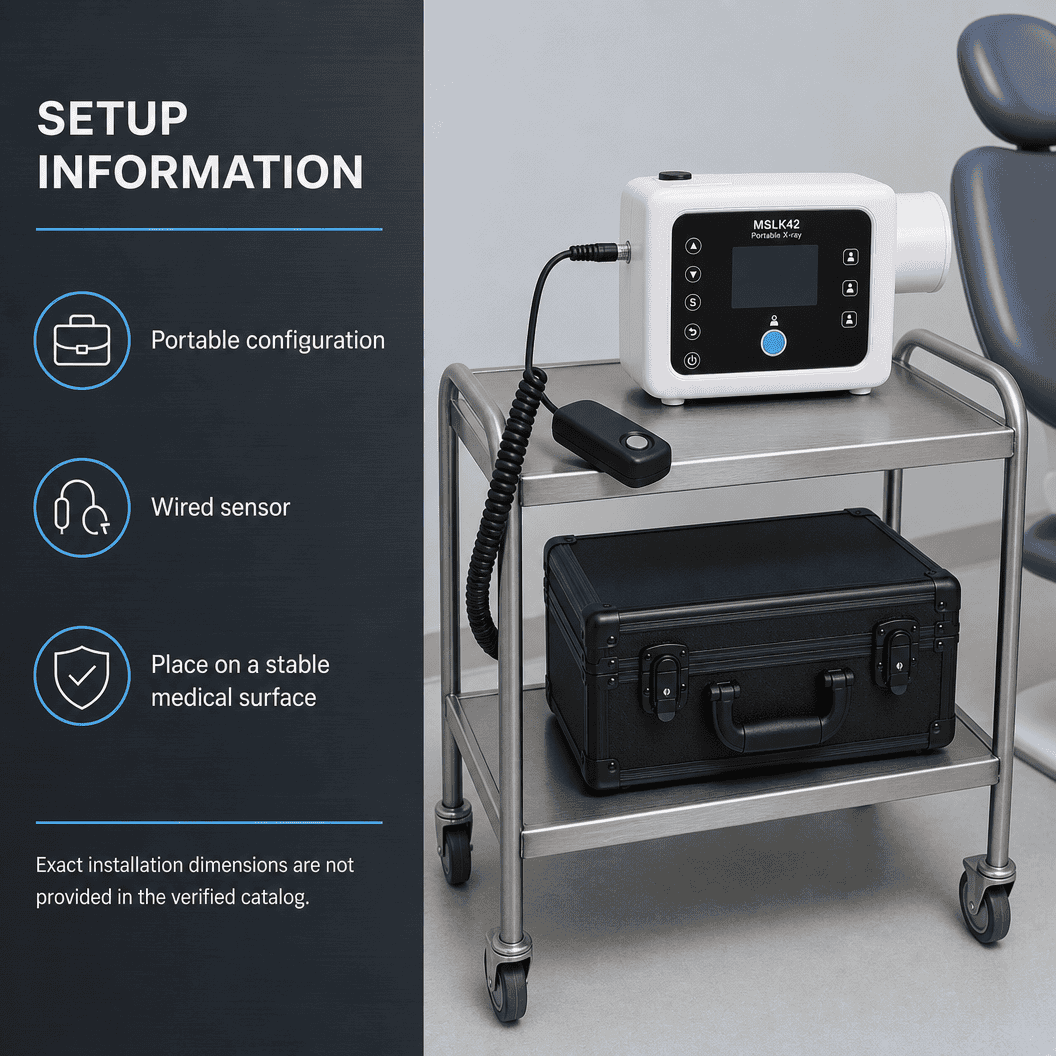

MSLK42 Portable X-ray Instant Camera with wired sensor
Quantity:
MSLK42

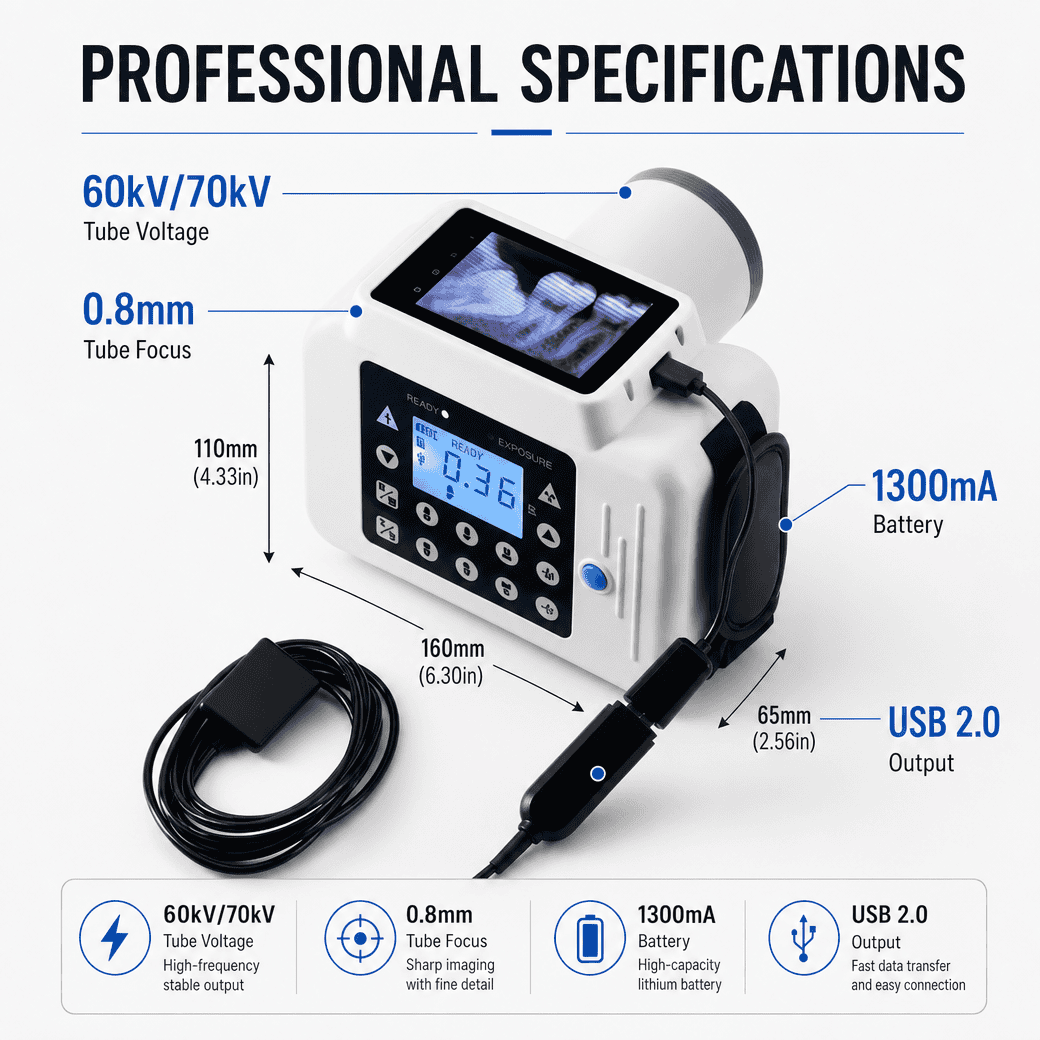

MSLK42 Portable X-ray Instant Camera with wired sensor delivers fast and precise intraoral imaging in clinics and mobile practice. It combines a portable X-ray unit (tube voltage 60 (70) kV, exposure time 0.1-2 s) with high-resolution wired sensor options COX-2230 / COX-2635 (effective pixel up to 1402x1888, resolution >10 lp/mm). USB 2.0 output, rechargeable battery and AC100V-240V universal charger input make it easy to deploy and use.
Quick Details
Product name: Portable X-ray Instant Camera with wired sensor
Model number:MSLK42
Tube voltage: 60 (70) kV
Tube current: 2.0 (1.0, 1.5, 2.5) mA
Rated power: 120 (100–175) VA
Exposure time: 0.1–2 s

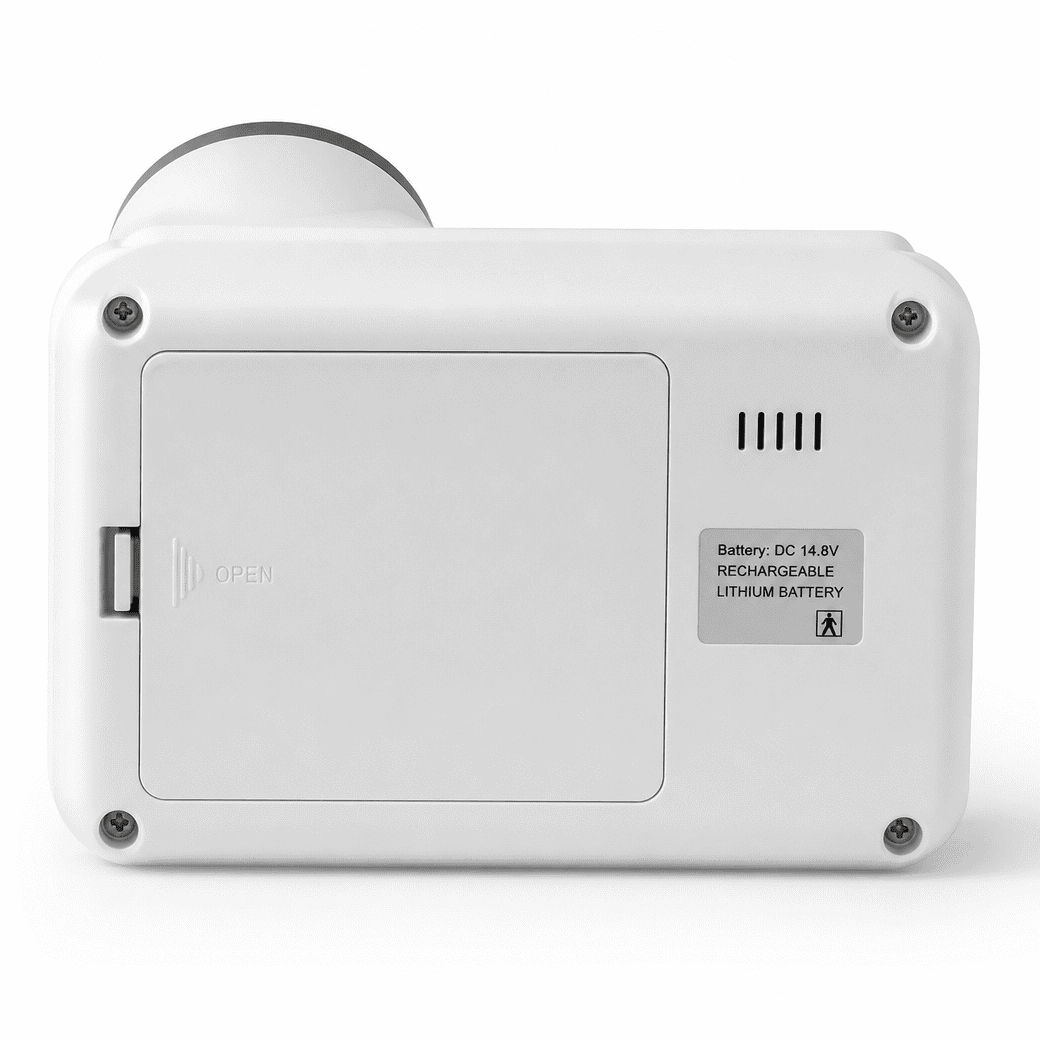

Battery: DC 14.8 V, 1300 mA
Tube focus: 0.8 × 0.8 mm (0.4 × 0.4 mm)
Detector options: COX-2230 / COX-2635

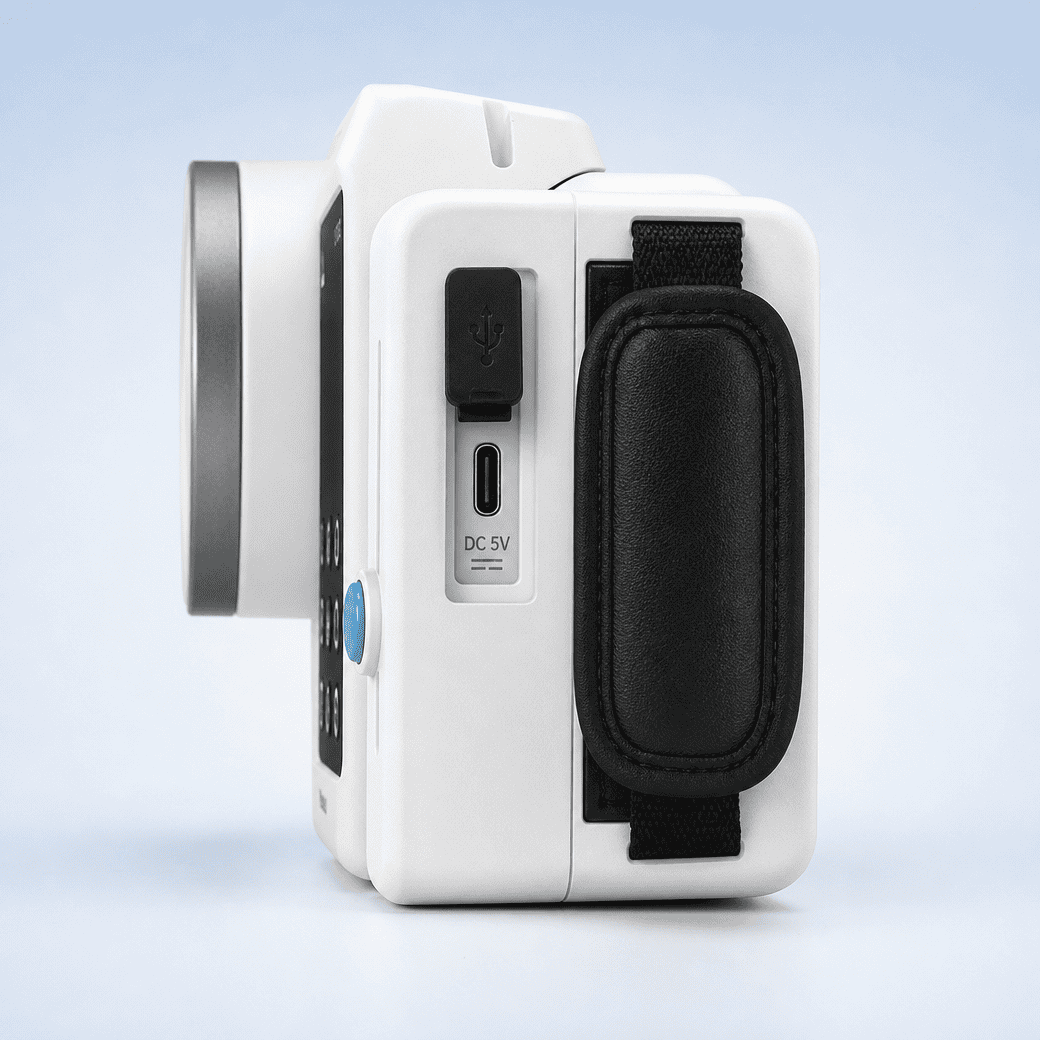

Output: USB 2.0
ESD: 8 kV
Service temperature: 0–40 °C
Specification
| Product name | Portable X-ray Instant Camera with wired sensor |
|---|---|
| Model | MSLK42 |
| Tube voltage | 60 (70) kV |
| Tube current | 2.0 (1.0, 1.5, 2.5) mA |
| Rated power | 120 (100–175) VA |
| Exposure time | 0.1–2 s |
| Battery | DC 14.8 V, 1300 mA |
| Tube focus | 0.8 × 0.8 mm (0.4 × 0.4 mm) |
| Detector options | COX-2230 / COX-2635 |
| Effective pixels | COX-2230: 1200 × 1600 pixels; COX-2635: 1402 × 1888 pixels |
| Effective area | COX-2230: 22.2 × 29.6 mm; COX-2635: 26 × 35 mm |
| Resolution | >10 lp/mm |
| Output | USB 2.0 |
| ESD | 8 kV |
| Service temperature | 0–40 °C |
Specifications are transcribed from the MSLK42 catalog. Please verify the final configuration and technical documents before ordering.
Frequently Asked Questions
What is the model of this portable X-ray instant camera?
The model listed on this product page is MSLK42.
Which tube voltage and tube current settings are listed?
The listed tube voltage is 60 (70) kV, and the listed tube current is 2.0 (1.0, 1.5, 2.5) mA.
What exposure time is listed for MSLK42?
The listed exposure time is 0.1-2 s.
Which detector options are listed?
The listed detector options are COX-2230 and COX-2635.
What output connection is listed?
The product page lists USB 2.0 output.
