SYRJ C200
Quantity:
C200
HIGH FREQUENCY MOBILE DIGITAL C ARM SYSTEM
5kw 100mA + CANON Image Intensifier + 3 monitors
5kw 100mA + CANON Image Intensifier + 3 monitors

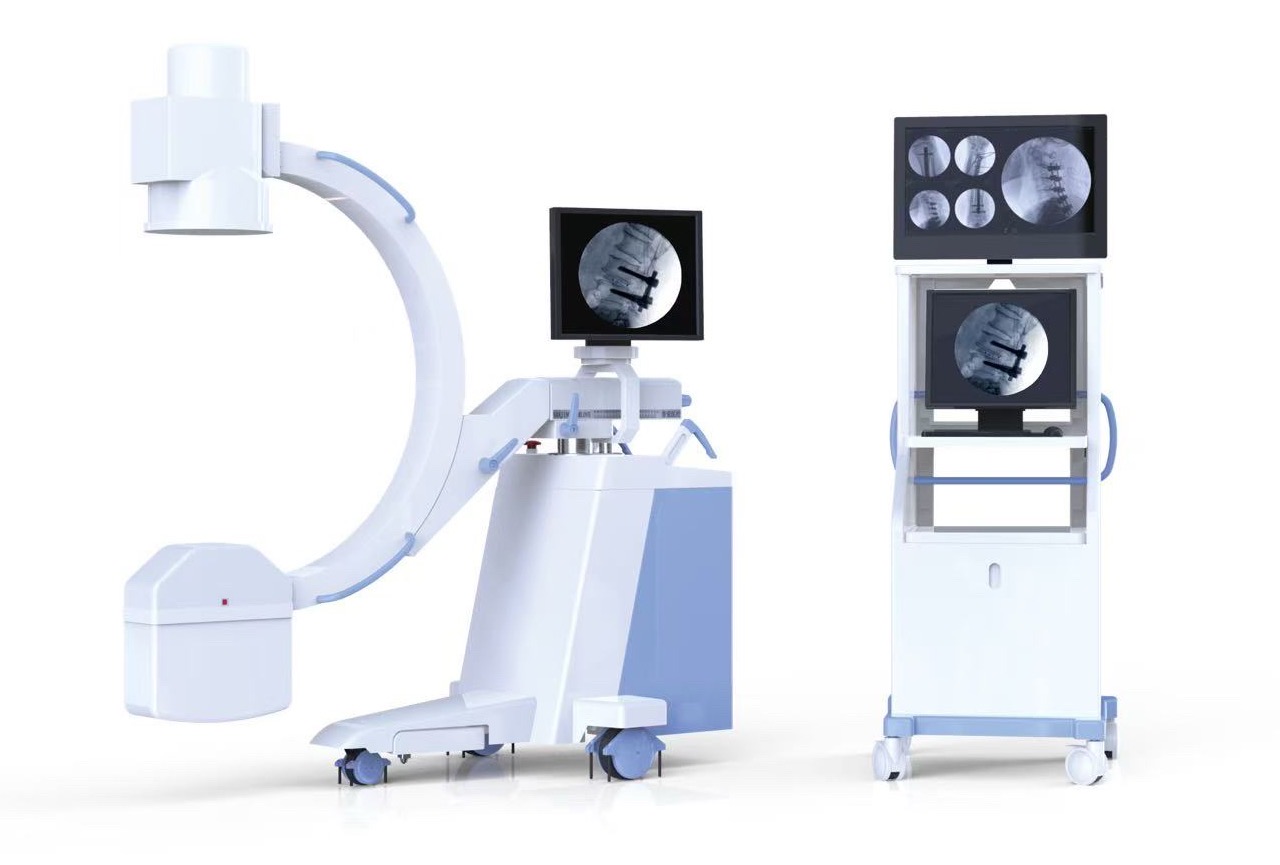

Product: SYRJ C200 High Frequency Portable C Arm | X Ray C Arm Surgery Machine for Operating Room
Product Overview
The SYRJ C200 from Shuyuan Runjing Medical represents advanced portable c arm technology engineered for demanding surgical environments. Unlike conventional stationary fluoroscopy systems, this x ray c arm combines high-frequency X-ray generation with exceptional mobility, making it the preferred choice for facilities seeking versatile intraoperative visualization.
Designed as a premium surgery c arm machine, the SYRJ C200 delivers 5kW high-frequency X-ray generation with automatic kV/mA tracking for optimal image quality during procedures. Its innovative triple-monitor configuration and optimized mechanical design create exceptional portability while maintaining robust surgical capabilities. Whether deployed in orthopedic suites, emergency departments, or interventional procedures, this portable c arm system ensures reliable performance with minimized radiation exposure.
For healthcare providers evaluating x ray c arm options, the SYRJ C200 stands out through its integration of mega-pixel ultra-low-illumination camera technology, comprehensive DICOM 3.0 connectivity, and intelligent image processing—all essential features for modern surgical suites requiring seamless workflow integration.
This surgery c arm machine solution bridges the gap between conventional stationary systems and advanced portable c arm requirements, making it particularly valuable for facilities requiring flexible, high-performance x ray c arm capabilities across multiple departments.
Key Benefits
Advanced Portable C Arm Design: Electric column lifting (400mm) with smooth-rolling wheels enables effortless positioning
High-Performance X Ray C Arm: 5kW high-frequency generator with ≥40kHz inverter reduces radiation while maintaining image quality
Triple Monitor Surgery C Arm Machine: 24"+ dual 19"LCD displays optimize visualization for entire surgical team
Intelligent Processing: Real-time image enhancement with edge enhancement and recursive noise reduction
DICOM 3.0 Ready: Seamless integration with hospital PACS, HIS, and RIS systems—critical for portable c arm workflow
Laser Positioning: Dual laser cross positioners ensure accurate alignment for every x ray c arm exposure
Optimized Weight Distribution: Designed for single-operator mobility while maintaining surgery c arm machine stability
Clinical Applications
1. Standard Orthopedic Surgery
As a dedicated surgery c arm machine, the SYRJ C200 excels in orthopedic procedures requiring precise bone alignment verification. The portable c arm configuration allows rapid positioning for fracture fixation, joint arthroplasty, and intramedullary nailing. Surgeons benefit from the system's x ray c arm clarity when visualizing complex anatomical structures, while maintaining full surgery c arm machine power for pelvic procedures.
As a dedicated surgery c arm machine, the SYRJ C200 excels in orthopedic procedures requiring precise bone alignment verification. The portable c arm configuration allows rapid positioning for fracture fixation, joint arthroplasty, and intramedullary nailing. Surgeons benefit from the system's x ray c arm clarity when visualizing complex anatomical structures, while maintaining full surgery c arm machine power for pelvic procedures.
2. Emergency & Trauma
In fast-paced ER environments, this portable c arm delivers immediate imaging capabilities without transferring unstable patients. The compact x ray c arm design facilitates bedside procedures, while robust 5kW output ensures diagnostic-quality images for trauma assessment. Every emergency department benefits from having a dedicated surgery c arm machine available 24/7.
3. Interventional Procedures
The SYRJ C200 x ray c arm supports various interventional procedures with its pulse fluoroscopy mode, minimizing radiation while maintaining image quality. The portable c arm design enables quick transitions between operating rooms, maximizing equipment utilization while providing surgery c arm machine reliability.
4. Foreign Body Removal & Pacemaker Implantation
Specifically configured for precise localization procedures, this surgery c arm machine provides the magnification and clarity needed for foreign body retrieval and cardiac device implantation. The portable c arm processing ensures optimal contrast resolution for these critical applications.
Technical Specifications Table
| Specification Category | Details | Portable C Arm Advantage |
|---|---|---|
| Generator | 5kW high-frequency, ≥40kHz inverter | Ensures consistent x ray c arm performance |
| Tube Voltage | 40-120kV (fluoro & radiography) | Broad range for surgery c arm machine versatility |
| Tube Current | Fluoro: 0.3-4mA (continuous), 0.3-30mA (pulse) | Optimized for portable c arm protocols |
| X-Ray Tube | Dual-focus (0.6mm/1.8mm), 35.5kJ anode | X ray c arm reliability with extended life |
| Image Intensifier | Canon 9"E5764SD-P3, 4.8 lp/mm, DQE 65% | Premium surgery c arm machine imaging component |
| Camera System | 1024×1024, 12-bit mega-pixel progressive scan | Exceeds standard portable c arm quality |
| Monitor Configuration | 24"+ dual 19"LCD displays | X ray c arm team viewing optimization |
| Mechanical Movement | SID 1000mm, C-arm opening 800mm, depth 670mm | Surgery c arm machine access for all patient sizes |
| Vertical Travel | 400mm motorized lifting | Key portable c arm convenience feature |
| Rotation Range | Horizontal ±180°, vertical ±15°, orbital 120° | X ray c arm positioning flexibility |
| Collimator | Electric iris + linear symmetrical rotatable | Precise field limitation for surgery c arm machine safety |
| Weight Optimization | Designed for single-operator mobility | Portable c arm profile for easy transport |
Advanced Features
1. Superior Mobility Design
Unlike conventional x ray c arm systems, the SYRJ C200 features optimized weight distribution and smooth-rolling directional wheels. This portable c arm design enables single-operator positioning while maintaining surgery c arm machine stability during image acquisition.
Unlike conventional x ray c arm systems, the SYRJ C200 features optimized weight distribution and smooth-rolling directional wheels. This portable c arm design enables single-operator positioning while maintaining surgery c arm machine stability during image acquisition.
2. Triple Monitor Configuration
The innovative triple-monitor setup with 24"primary and dual 19"secondary displays enables simultaneous viewing by entire surgical team. This x ray c arm arrangement provides capabilities rarely found in standard portable c arm configurations.
3. Intelligent Image Processing
The surgery c arm machine workstation automatically optimizes images with real-time edge enhancement and recursive noise reduction. This portable c arm intelligence reduces manual adjustments while delivering x ray c arm clarity for precise surgical navigation.
4. Laser Precision Positioning
Dual laser cross positioners ensure accurate alignment before every x ray c arm exposure. This surgery c arm machine feature minimizes repeat exposures and enhances patient safety—critical advantages for busy portable c arm operations.
FAQ
Q1: How does the SYRJ C200 surgery c arm machine compare to stationary x ray c arm systems?
A: The SYRJ C200 offers unique surgery c arm machine advantages through its optimized mobility and triple-monitor setup. While maintaining x ray c arm imaging quality, it provides enhanced flexibility rarely found in competitive portable c arm models.
A: The SYRJ C200 offers unique surgery c arm machine advantages through its optimized mobility and triple-monitor setup. While maintaining x ray c arm imaging quality, it provides enhanced flexibility rarely found in competitive portable c arm models.
Q2: Is this surgery c arm machine suitable for outpatient surgery centers?
A: Absolutely. The portable c arm design and mobility features make it perfect for ASCs. Its x ray c arm capabilities allow easy room-to-room transport, while the surgery c arm machine performance supports diverse surgical procedures in outpatient settings.
A: Absolutely. The portable c arm design and mobility features make it perfect for ASCs. Its x ray c arm capabilities allow easy room-to-room transport, while the surgery c arm machine performance supports diverse surgical procedures in outpatient settings.
Q3: What maintenance is required for this portable c arm system?
A: Like any x ray c arm, annual calibration and safety inspections are required. The SYRJ C200's high-frequency generator and solid-state components reduce routine maintenance compared to older surgery c arm machine technologies.
A: Like any x ray c arm, annual calibration and safety inspections are required. The SYRJ C200's high-frequency generator and solid-state components reduce routine maintenance compared to older surgery c arm machine technologies.
Q4: How quickly can the surgery c arm machine be repositioned during procedures?
A: The portable c arm features motorized vertical movement and smooth-rolling wheels. A single technician can reposition this x ray c arm in under 3 minutes, maximizing surgical efficiency across multiple procedures.
A: The portable c arm features motorized vertical movement and smooth-rolling wheels. A single technician can reposition this x ray c arm in under 3 minutes, maximizing surgical efficiency across multiple procedures.

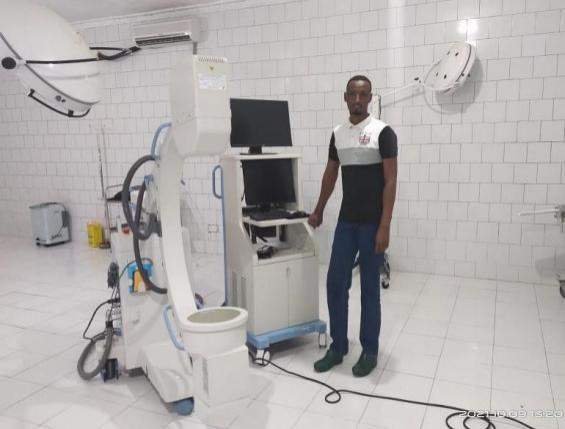

Worldwide Installation
