SYRJ DR1400
Quantity:
DR1400
Floor Mounted; Elevating table

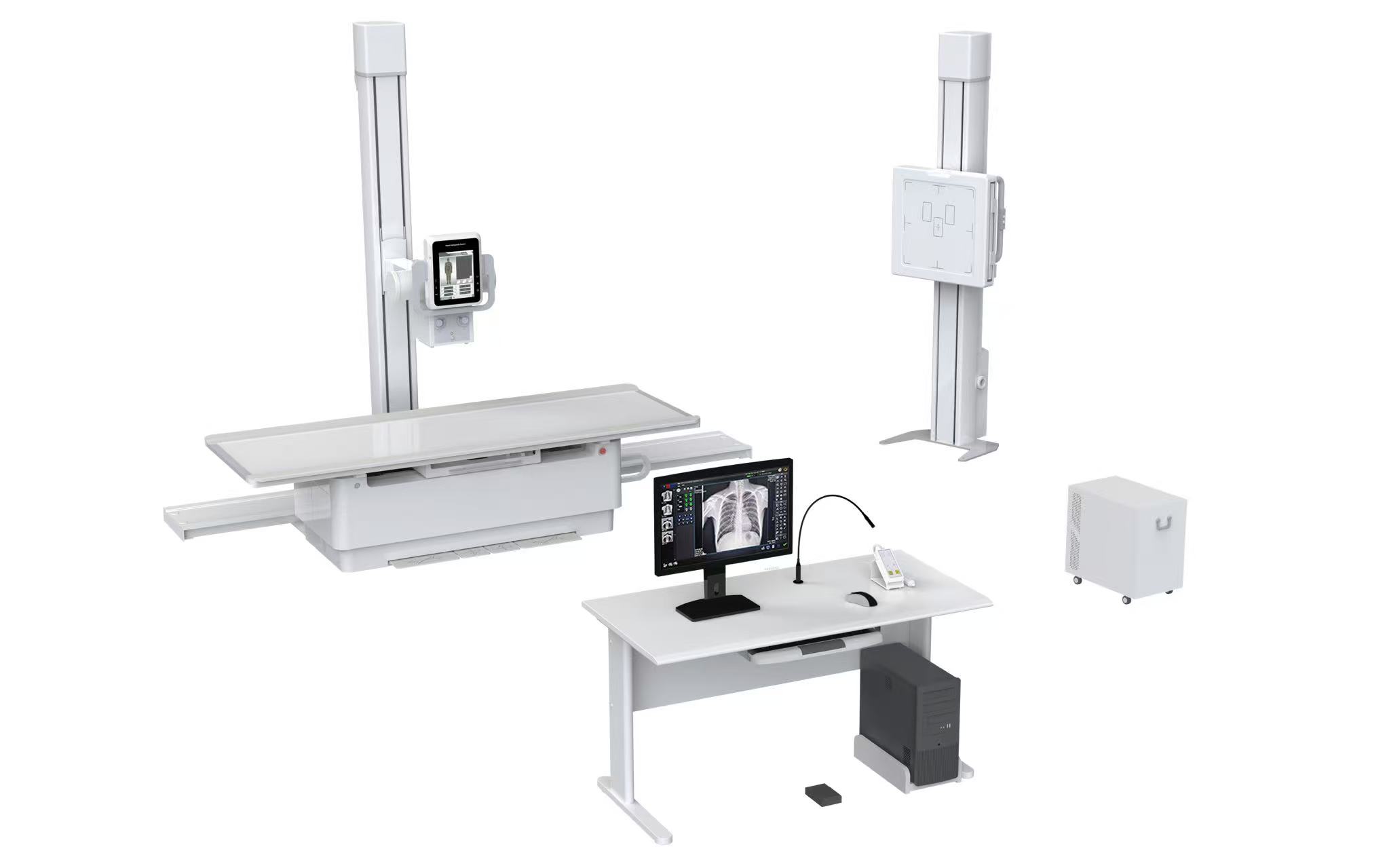

Product Page: SYRJ DR1400 Digital X Ray System - Advanced Digital Radiography & Digital X Ray Imaging Platform
Dual-Panel Digital Radiography System for Maximum Clinical Throughput
The SYRJ DR1400 digital x ray system represents the evolution of modern radiography, integrating dual wireless flat-panel detector technology with an 85kW ultra-high-frequency generator. This sophisticated digital radiography platform delivers exceptional flexibility for hospitals requiring maximum throughput and versatility. As a comprehensive digital x ray imaging solution, the SYRJ DR1400 digital x ray system serves radiology departments, emergency rooms, orthopedic wards, and specialized imaging centers with unprecedented dual-detector efficiency. This digital radiography system features automatic tube-detector synchronization, elevating table design, and low-profile digital x ray imaging capabilities—establishing new standards for digital x ray system performance.
Key Features of This Dual-Detector Digital X Ray System
Dual Wireless Digital Radiography Detectors
The SYRJ DR1400 digital x ray system incorporates two 17×17-inch wireless FPDs with 140μm pixel pitch and 16-bit grayscale depth. This digital radiography configuration enables simultaneous table and upright examinations without detector repositioning, doubling throughput compared to single-detector digital x ray imaging systems.
The SYRJ DR1400 digital x ray system incorporates two 17×17-inch wireless FPDs with 140μm pixel pitch and 16-bit grayscale depth. This digital radiography configuration enables simultaneous table and upright examinations without detector repositioning, doubling throughput compared to single-detector digital x ray imaging systems.
Unprecedented Power for Digital X Ray Imaging
This digital x ray system utilizes a 500kHz ultra-high frequency generator producing 85kW maximum output with 1000mA tube current. The digital radiography platform's 1664kHU total heat capacity supports 800+ daily exposures, making it the ultimate digital x ray imaging solution for high-volume facilities.
Revolutionary Digital X Ray System Synchronization
Unlike conventional digital radiography designs, this digital x ray system features automatic tube-and-detector synchronization that adjusts irradiation range based on examination site. The digital x ray imaging system reduces repeat exposures by 40% through intelligent alignment, showcasing superior digital radiography workflow.
Advanced Digital X Ray Imaging Table
This digital x ray system includes a motorized elevating table (500-720mm height range) with 35cm minimal tube-to-floor distance. The digital radiography platform enables wheelchair and gurney examinations without patient transfer—a unique digital x ray imaging advantage.
Technical Specifications
| Parameter | 85kW Dual-Panel Specification | Digital X Ray Imaging Advantage |
|---|---|---|
| Max Output Power | 85kW | Ultra-high power digital x ray system |
| Inverter Frequency | 500kHz | Stable digital radiography output |
| Tube Voltage | 40-150kV | Versatile digital x ray imaging range |
| Tube Current | 10-1000mA | Robust digital radiography capability |
| Total Heat Capacity | 1664kHU | Continuous digital x ray system operation |
| Detector Configuration | Dual 17"×17"wireless FPDs | Simultaneous digital x ray imaging |
| Pixel Matrix | 3072×3072 pixels | High-resolution digital radiography |
| Pixel Pitch | 140μm | Fine detail digital x ray system imaging |
| Grayscale Depth | 16-bit | Superior digital x ray imaging contrast |
| Table Height Range | 500-720mm | Flexible digital radiography positioning |
| Low Profile Capability | 35cm tube-to-floor | Unique digital x ray system flexibility |

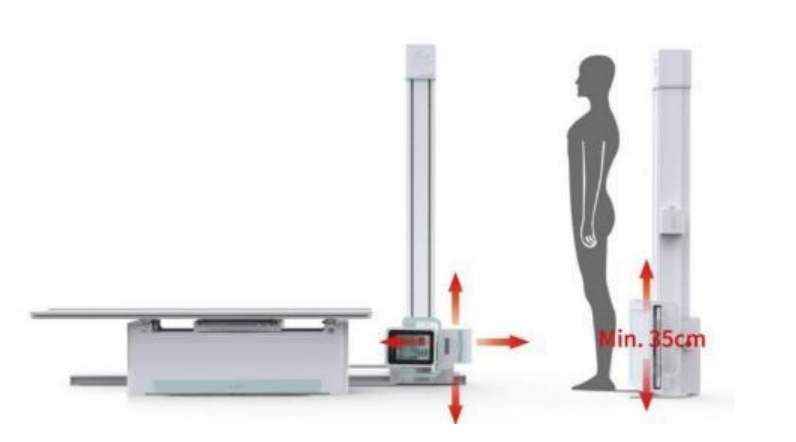

Low profile radiography
35cm minimal distance between X-ray tube and the floor, allowing low profile radiography covered by wide range tube movement.

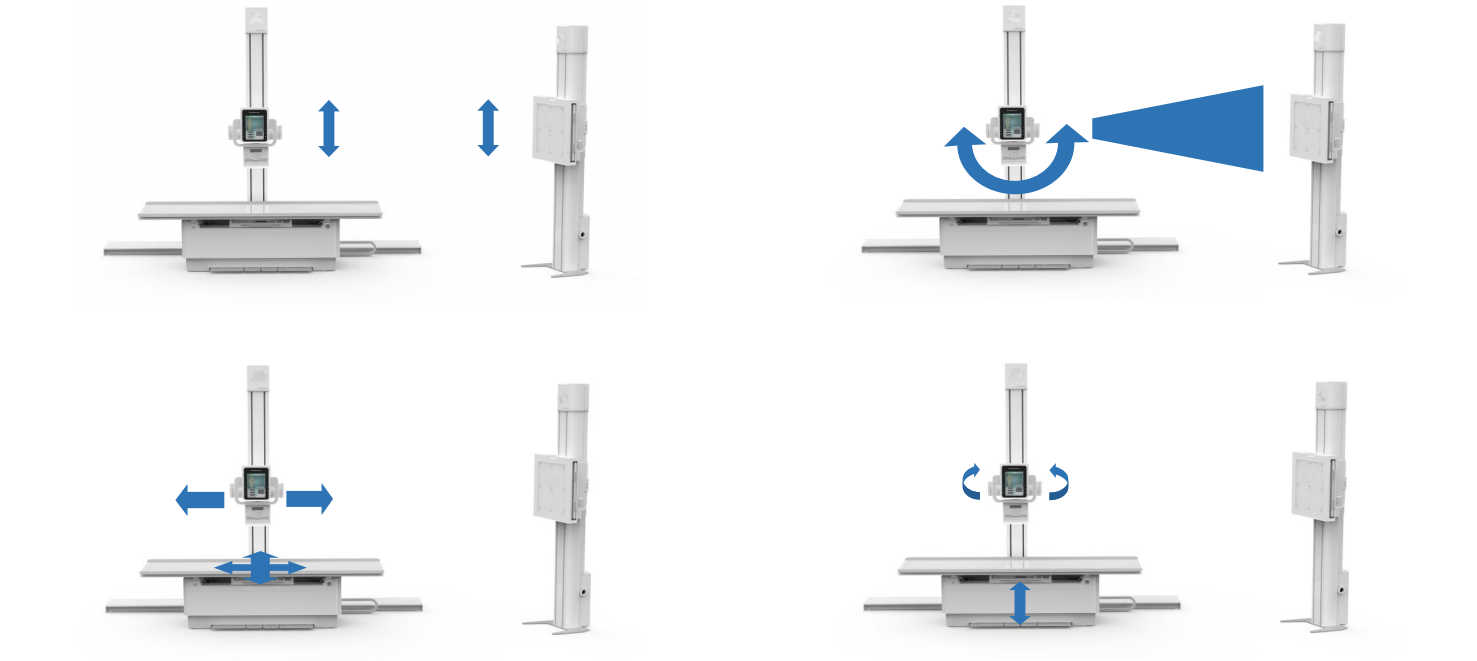

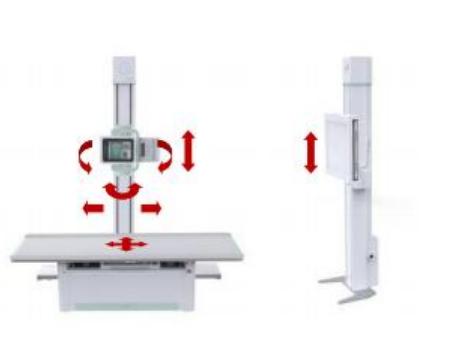

Motored movement & Electromagnetic floating & Manual
Tube up and down
Detector of Bcuky stand up and down
Table Floating
Longitudinal moving of spherical column
Tube rotates around the column
Tube Swing around axis
Detector of Bcuky stand up and down
Table Floating
Longitudinal moving of spherical column
Tube rotates around the column
Tube Swing around axis

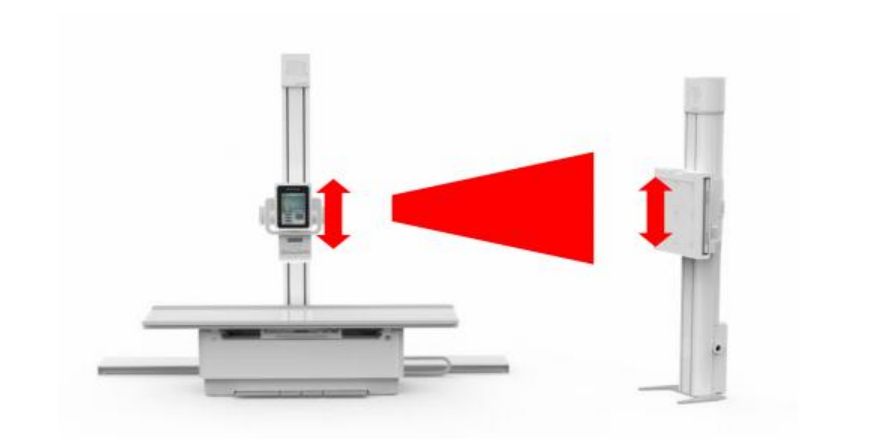

Tube and Detector synchronous tracking
Lastest automatic tracking (Tube & detector)
The X-ray irradiation range can be automatically adjusted according to the inspection site, and the detector of bucky stand and the tube can be synchronized during upright examination, which is different from the traditional electric beam limiter tube and the chest X-ray frame. work efficiency.
Manual operation of simultaneous movement of tube and chest rack
To ensure that when the automatic tracking system fails, the tube and detector of bucky stand can still be tracked synchronously to ensure the normal progress of daily inspections.
To ensure that when the automatic tracking system fails, the tube and detector of bucky stand can still be tracked synchronously to ensure the normal progress of daily inspections.
Clinical Applications
High-Volume Emergency Department
This digital x ray system handles 300+ daily examinations across all anatomies. The digital radiography dual-detector configuration eliminates bottlenecks, providing continuous digital x ray imaging capability during peak hours.
Orthopedic and Trauma Surgery
The digital x ray imaging system's wireless dual detectors enable rapid switching between table and upright positions. Digital radiography workflow reduces examination time by 50% compared to single-detector digital x ray system setups.
Pediatric and Bariatric Digital Radiography
This digital x ray imaging platform's removable grids and 35cm low-profile capability accommodate patients from pediatric to 300kg bariatric cases. The digital radiography system provides consistent digital x ray imaging quality across all patient types.
Long-Leg and Scoliosis Digital X Ray Imaging
The digital x ray system's full-field 17×17 detectors capture complete anatomical regions without stitching. Digital radiography technology ensures perfect alignment for accurate digital x ray imaging measurements.
Radiography dep
Fever clinic
Children’s Dep
Operating room
ICU
Medical Center

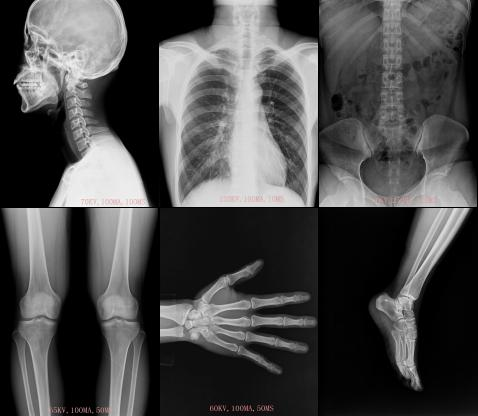

Clinical Images
Why SYRJ DR1400 Digital Radiography Excels
Dual-Detector Digital X Ray System Efficiency
Unlike single-detector digital x ray imaging alternatives, this digital radiography solution operates two detectors simultaneously—eliminating detector swap time and maximizing digital x ray system throughput.
Unlike single-detector digital x ray imaging alternatives, this digital radiography solution operates two detectors simultaneously—eliminating detector swap time and maximizing digital x ray system throughput.
24/7 Digital Radiography Operation
While conventional digital x ray imaging equipment requires downtime, this digital radiography system operates continuously. The digital x ray system's 1664kHU heat capacity ensures zero thermal limitations during peak digital radiography demand.
Complete Digital X Ray Imaging Integration

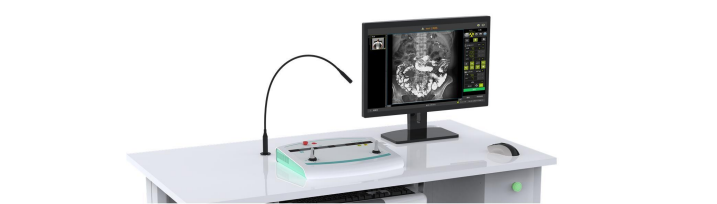

The digital radiography platform's DICOM 3.0 Worklist SCU and PACS/HIS/RIS connectivity create a completely automated digital x ray imaging workflow from order entry to final report generation.
Intelligent Digital Radiography Safety
Unique to this digital x ray system, infrared anti-collision sensors and automatic parameter management prevent common operator errors, improving patient safety during digital x ray imaging procedures.
FAQ:
Q: How does this dual-detector digital x ray system improve efficiency?
A: This digital radiography platform eliminates detector repositioning time, enabling simultaneous table and upright examinations. The digital x ray imaging configuration doubles throughput compared to conventional digital x ray system designs.
Q: Can this digital radiography system handle bariatric patients?
A: Absolutely. The digital x ray system's 85kW generator and 1000mA output provide sufficient penetration for patients up to 300kg and 50cm thickness, outperforming standard digital radiography equipment.
Q: What digital x ray imaging protocols are included?
A: This digital radiography system includes 200,000+ preset APR programs covering all anatomical regions, with specialized digital x ray imaging protocols for pediatric, bariatric, and low-dose examinations.
