DR600
HIGH FREQUENCY DIGITAL MOBILE X-RAY MACHINE
Mobile X-ray machine + Flat panel detector + Workstation (Portable computer)
Mobile X-ray machine + Flat panel detector + Workstation (Portable computer)

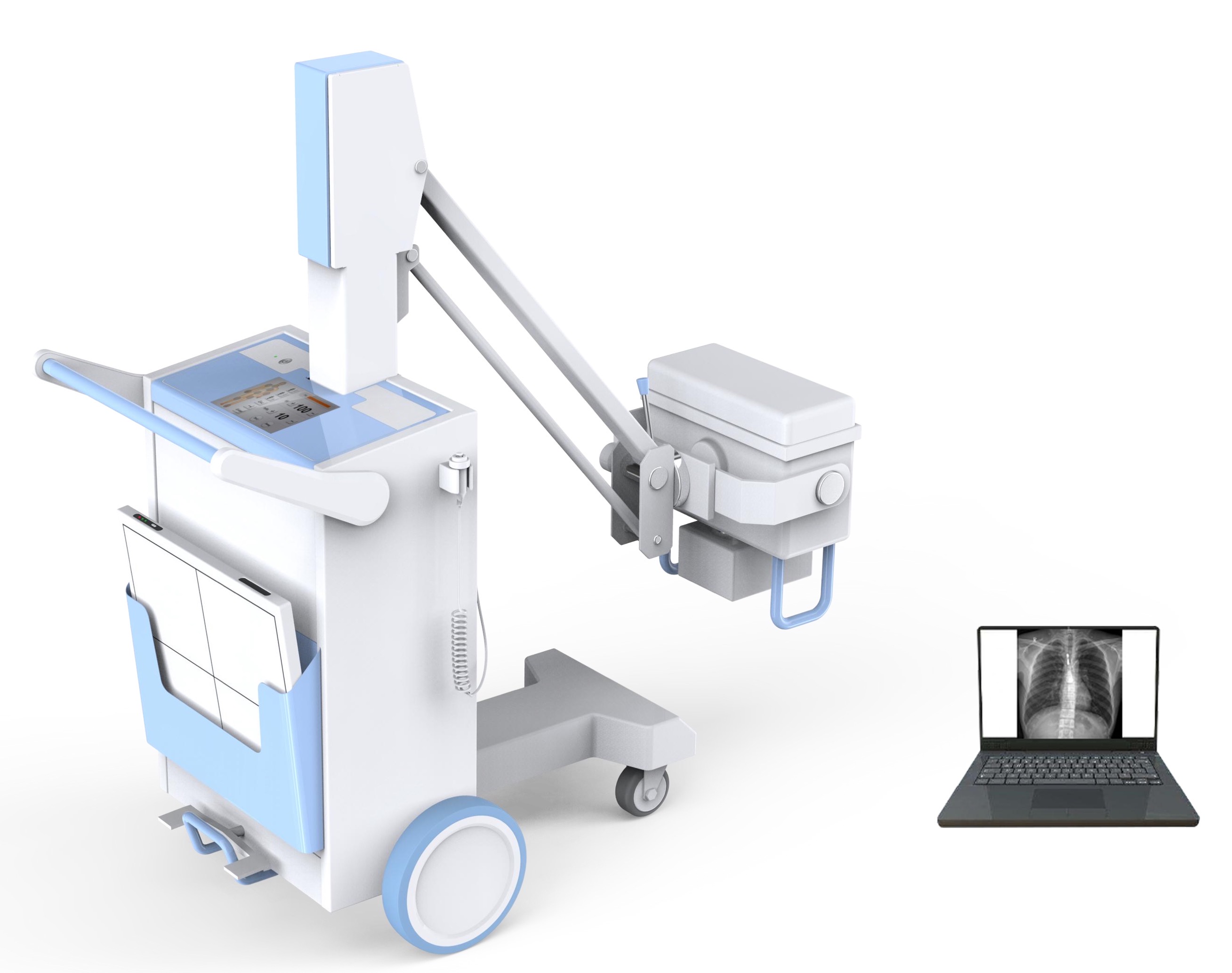

Product: SYRJ DR600 High Frequency Digital Radiography System
Professional Portable X Ray System for Critical Care Environments
The SYRJ DR600 mobile DR represents a breakthrough in portable x ray system technology, delivering hospital-grade digital radiography system capabilities directly to patient bedside. This high-frequency mobile DR unit combines exceptional image quality with unparalleled maneuverability, making it the ideal portable x ray system for radiology departments, emergency rooms, ICUs, operating theaters, and orthopedic wards. Engineered for demanding clinical environments, this digital radiography system features a 5kW high-frequency generator and advanced flat-panel detector technology that ensures diagnostic excellence while optimizing workflow efficiency.
Key Features & Clinical Benefits of This Mobile DR Platform
Revolutionary Generator Technology
The SYRJ DR600 mobile DR integrates a 50kHz high-frequency monoblock generator with 650kJ thermal capacity, enabling extended continuous operation essential for high-volume portable x ray system deployments. This digital radiography system employs digital closed-loop control for precise exposure management.
The SYRJ DR600 mobile DR integrates a 50kHz high-frequency monoblock generator with 650kJ thermal capacity, enabling extended continuous operation essential for high-volume portable x ray system deployments. This digital radiography system employs digital closed-loop control for precise exposure management.
Superior Portability & Maneuverability
As a truly portable x ray system, the SYRJ DR600 mobile DR features an ultra-lightweight mobile stand with vertical movement range from 500mm to 2000mm. The mobile DR's compact design allows navigation through standard doorways and crowded hospital corridors, while the self-balancing arm stops securely at any position for emergency bedside procedures.
As a truly portable x ray system, the SYRJ DR600 mobile DR features an ultra-lightweight mobile stand with vertical movement range from 500mm to 2000mm. The mobile DR's compact design allows navigation through standard doorways and crowded hospital corridors, while the self-balancing arm stops securely at any position for emergency bedside procedures.
Wireless Operational Freedom
This advanced digital radiography system includes both handheld wired control and microwave wireless remote exposure capability (20-meter range). Unlike infrared systems, the portable x ray system's microwave technology operates without line-of-sight limitations, enabling technologists to maintain safe distances during mobile DR examinations.
This advanced digital radiography system includes both handheld wired control and microwave wireless remote exposure capability (20-meter range). Unlike infrared systems, the portable x ray system's microwave technology operates without line-of-sight limitations, enabling technologists to maintain safe distances during mobile DR examinations.
Clinical Applications

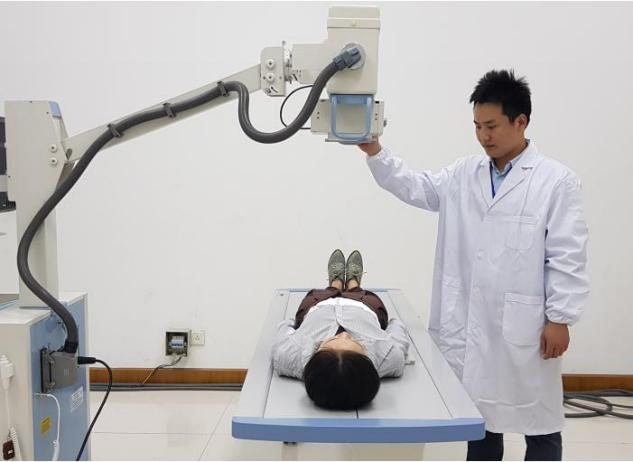

The SYRJ DR600 portable x ray system transforms point-of-care imaging across multiple departments. In emergency medicine, this mobile DR enables immediate trauma assessment without patient transport. The digital radiography system excels in ICU chest imaging for ventilated patients, delivering diagnostic-quality studies at bedside.
Orthopedic Surgery: The portable x ray system's maneuverability allows intraoperative imaging with the mobile DR, providing instant feedback during fracture reduction and joint procedures.
Geriatric Care: For non-ambulatory patients, this digital radiography system eliminates transport risks while maintaining imaging standards equivalent to fixed systems.
Pandemic Response: The mobile DR's infection control design and wireless operation make it ideal for isolation ward imaging, demonstrating why portable x ray system technology is critical for modern healthcare preparedness.
Technical Specifications
| Parameter | Specification | Clinical Advantage |
|---|---|---|
| Generator Type | 50kHz High-Frequency Monoblock | Optimized for portable x ray system stability |
| Power Output | 5kW continuous | Reliable mobile DR performance across all anatomies |
| kV Range | 40-120kV (1kV steps) | Versatile digital radiography system settings |
| mA Range | 25-100mA | Precise exposure control in portable x ray system mode |
| Exposure Time | 0.02s - 12s | Captures optimal images with this mobile DR |
| X-ray Tube | Dual Focus 1.8mm×0.6mm | Enhanced digital radiography system flexibility |
| Thermal Capacity | 650kJ | Extended mobile DR operation without cooldown |
| Flat Panel Detector | 15"×18"CsI + Amorphous Silicon | High-resolution portable x ray system imaging |
| Spatial Resolution | 3.3Lp/mm | Exceptional digital radiography system detail |
| Pixel Size | 150μm | Fine image quality from this mobile DR |
| Grayscale Output | 16-bit (65,536 levels) | Superior portable x ray system contrast resolution |
| Collimator | 120W Halogen Light Beam | Precise field alignment for mobile DR procedures |
| Movement Range | Vertical: 500mm-2000mm | Comprehensive digital radiography system positioning |
| Rotational Freedom | Horizontal 180°, Vertical ±90° | Maximum portable x ray system flexibility |
| Wireless Control | Microwave remote (10m effective) | Safe mobile DR operation distances |
| Power Supply | Single-phase 220V ±10%, 50Hz | Standard digital radiography system requirements |
Why SYRJ DR600 Mobile DR System Outperforms Conventional Portable X Ray Systems
Diagnostic Excellence: Unlike basic portable x ray system units, the SYRJ DR600 digital radiography system delivers 3.3Lp/mm spatial resolution comparable to fixed DR rooms. This mobile DR's 16-bit detector captures subtle pathological details that 14-bit portable x ray system competitors miss.

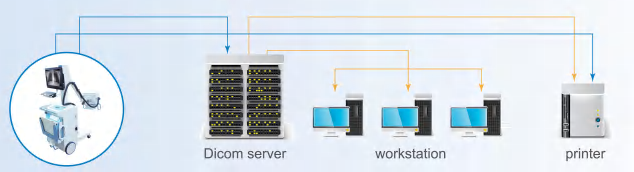

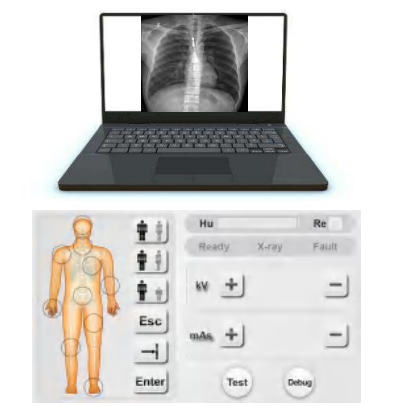

Workflow Integration: The mobile DR seamlessly integrates with hospital PACS via DICOM 3.0 protocols—true digital radiography system connectivity, not just image export. Technologists can print, store, and transmit studies directly from the portable x ray system workstation.
Cost-Effective Operation: This mobile DR's 650kJ thermal capacity supports 300+ daily exposures without overheating, maximizing departmental productivity. The digital radiography system's low-dose protocols reduce patient exposure while maintaining image quality, distinguishing it from conventional portable x ray system technology.
24/7 Reliability: Engineered with 20-year proven generator technology, the SYRJ DR600 mobile DR ensures continuous availability when your portable x ray system is needed most.
FAQ
Q: How does the SYRJ DR600 mobile DR ensure image quality comparable to fixed systems?
A: This portable x ray system utilizes a non-spliced CsI flat-panel detector with 150μm pixel pitch—identical to premium fixed digital radiography system installations. The mobile DR's 5kW generator delivers sufficient output for all anatomical views, while advanced image processing algorithms optimize contrast and detail.
Q: What distinguishes this mobile DR from other portable x ray system brands?
A: The SYRJ DR600 digital radiography system features microwave wireless control (not infrared), self-balancing arm technology, and a 20-year proven generator design. These portable x ray system innovations provide superior reliability and operational flexibility unmatched by standard mobile DR units.
Q: Can this digital radiography system integrate with our existing hospital network?
A: Absolutely. The mobile DR includes full DICOM 3.0 compliance for storage, print, and worklist management. This portable x ray system connects seamlessly to hospital PACS, RIS, and EMR systems for complete digital radiography system workflow integration.

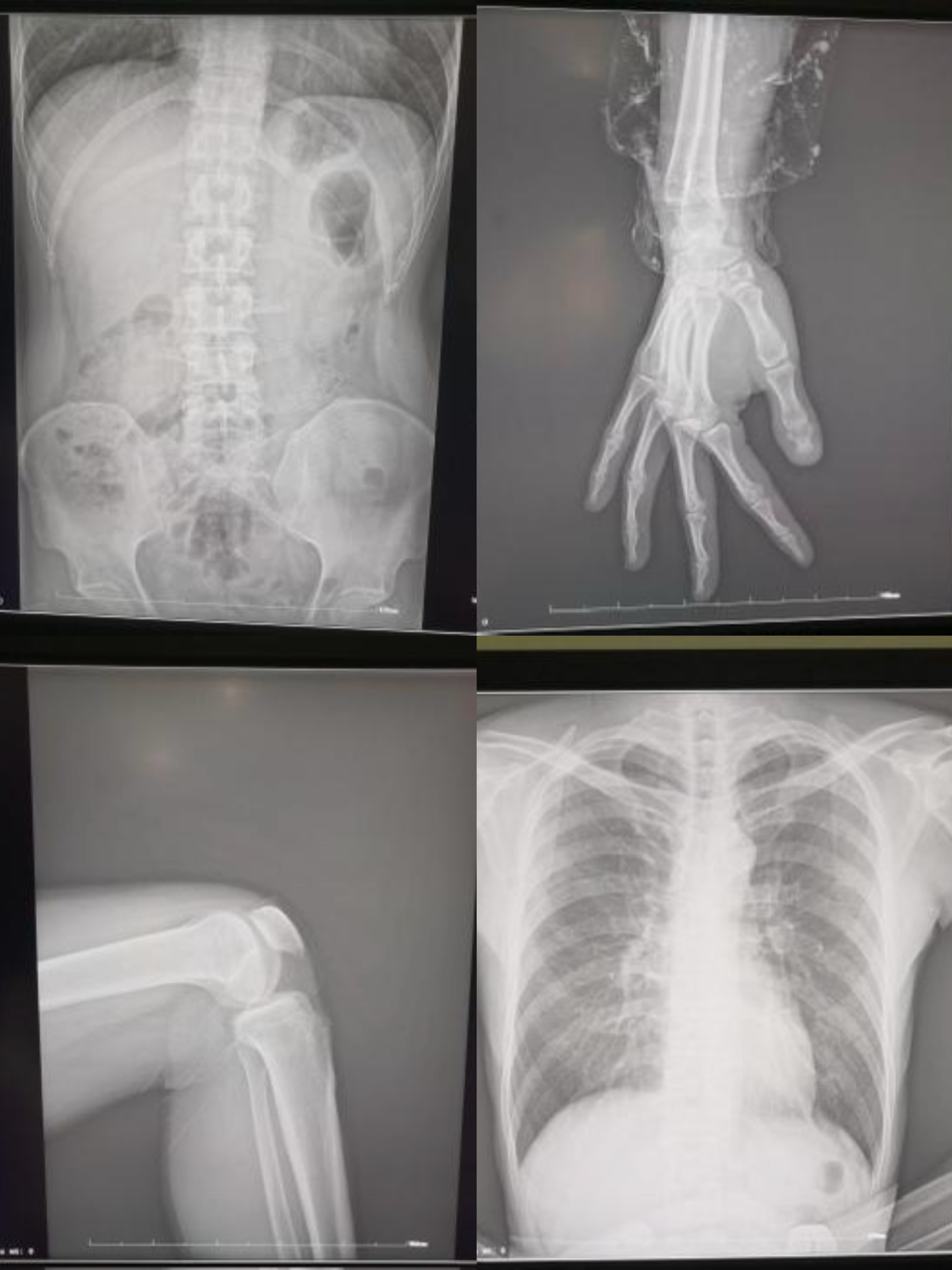

Clinical Images
