SYRJ DRF1600
Quantity:
DRF1600
DIGITAL RADIOGRAPHY&FLUOROSCOPY MACHINE

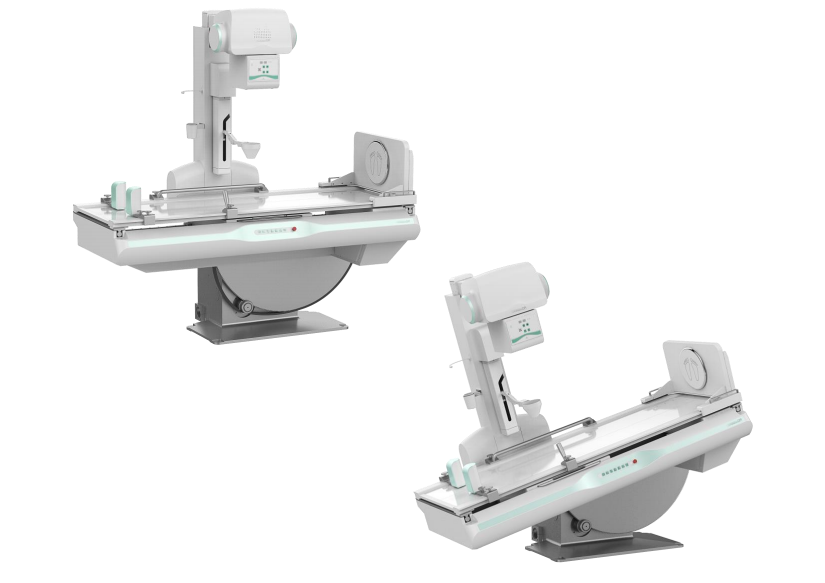

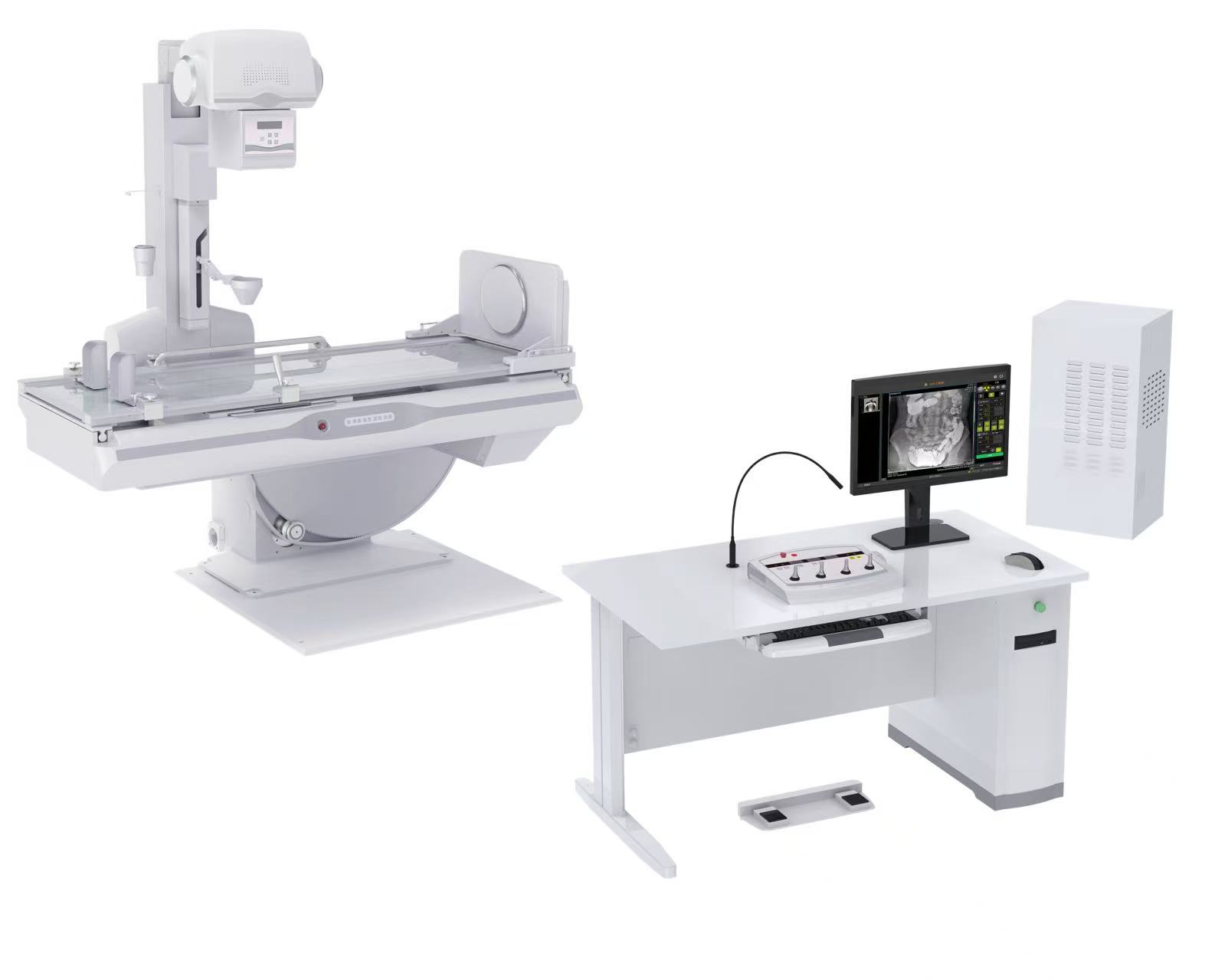

Product: SYRJ DRF1600 Digital X Ray & Fluoroscopy System - Advanced Digital Radiography & Dynamic Digital Radiography Platform
Premium Digital X Ray System with True Dynamic Digital Radiography Capability
The SYRJ DRF1600 digital x ray system represents a revolutionary advancement in medical imaging, seamlessly integrating high-performance digital radiography with real-time dynamic digital radiography capabilities. This versatile radiography system delivers both exceptional static images and live fluoroscopic visualization, making it the ideal dynamic digital radiography solution for modern radiology departments. The SYRJ DRF1600 digital x ray system eliminates the need for separate radiographic and fluoroscopic units, providing a unified digital radiography and dynamic digital radiography workstation that maximizes clinical efficiency while optimizing capital investment in this advanced radiography system.
Key Features of This Comprehensive Digital X Ray System
True Dynamic Digital Radiography Capability

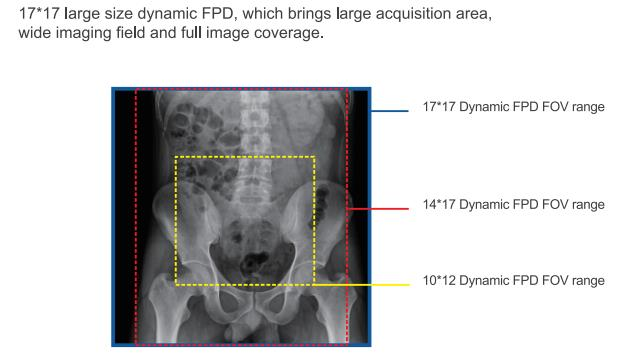

The SYRJ DRF1600 digital x ray system features a 17×17-inch dynamic flat-panel detector delivering real-time fluoroscopy at 12-30 fps with 3072×3072 resolution for static digital radiography. This radiography system supports pulse fluoroscopy and continuous fluoroscopy modes, enabling everything from gastrointestinal studies to complex interventional procedures—true dynamic digital radiography versatility that distinguishes this digital x ray system from conventional digital radiography equipment.
High-Power Digital X Ray Generation
This digital radiography system incorporates a 65.5kW high-frequency generator (500kHz) producing 800mA maximum tube current. The dynamic digital radiography platform's 900kJ heat capacity supports extended fluoroscopic procedures without thermal shutdown, making it a reliable digital x ray system for demanding clinical environments where both digital radiography and dynamic digital radiography are required.
This digital radiography system incorporates a 65.5kW high-frequency generator (500kHz) producing 800mA maximum tube current. The dynamic digital radiography platform's 900kJ heat capacity supports extended fluoroscopic procedures without thermal shutdown, making it a reliable digital x ray system for demanding clinical environments where both digital radiography and dynamic digital radiography are required.
Advanced Radiography System Imaging Modes
The SYRJ DRF1600 digital x ray system provides sequence photography at 3-6 fps, spot film radiography, and standard digital radiography exposures. This dynamic digital radiography solution seamlessly transitions between live visualization and high-resolution static capture without detector changes, showcasing the flexibility of this integrated radiography system.
The SYRJ DRF1600 digital x ray system provides sequence photography at 3-6 fps, spot film radiography, and standard digital radiography exposures. This dynamic digital radiography solution seamlessly transitions between live visualization and high-resolution static capture without detector changes, showcasing the flexibility of this integrated radiography system.
Intelligent Digital X Ray System Workflow

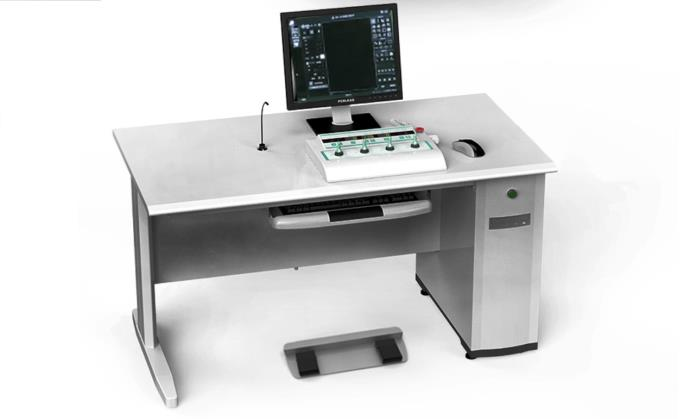

This digital radiography platform includes a comprehensive DICOM 3.0 workstation with 200,000+ anatomical programs, automatic window adjustment, and real-time image processing. The dynamic digital radiography system streamlines workflow from registration to report generation, demonstrating why this digital x ray system represents the future of radiography system design.
This digital radiography platform includes a comprehensive DICOM 3.0 workstation with 200,000+ anatomical programs, automatic window adjustment, and real-time image processing. The dynamic digital radiography system streamlines workflow from registration to report generation, demonstrating why this digital x ray system represents the future of radiography system design.
Technical Specifications
| Parameter | 65.5kW DRF Specification | Digital Radiography / Dynamic Digital Radiography Advantage |
|---|---|---|
| Max Output Power | 65.5kW (104kV, 630mA) | Ultra-high power digital x ray system |
| Inverter Frequency | 500kHz ±20% | Stable dynamic digital radiography output |
| Photographic kV Range | 40-150kV (1kV steps) | Versatile digital radiography settings |
| Fluoroscopy kV Range | 40-125kV (continuous) | Real-time dynamic digital radiography |
| Dynamic Detector Size | 434×434mm (17"×17") | Full-field digital x ray system |
| Frame Rates | 12-30 fps (fluoroscopy), 3-6 fps (sequence) | Smooth dynamic digital radiography |
| Total Heat Capacity | 900kJ (1250kHU) | Extended radiography system operation |
| Fluoroscopy mA Range | 0.5-20mA (pulse/continuous) | Flexible dynamic digital radiography dosing |
| Grayscale Depth | 16-bit | Superior digital radiography contrast |

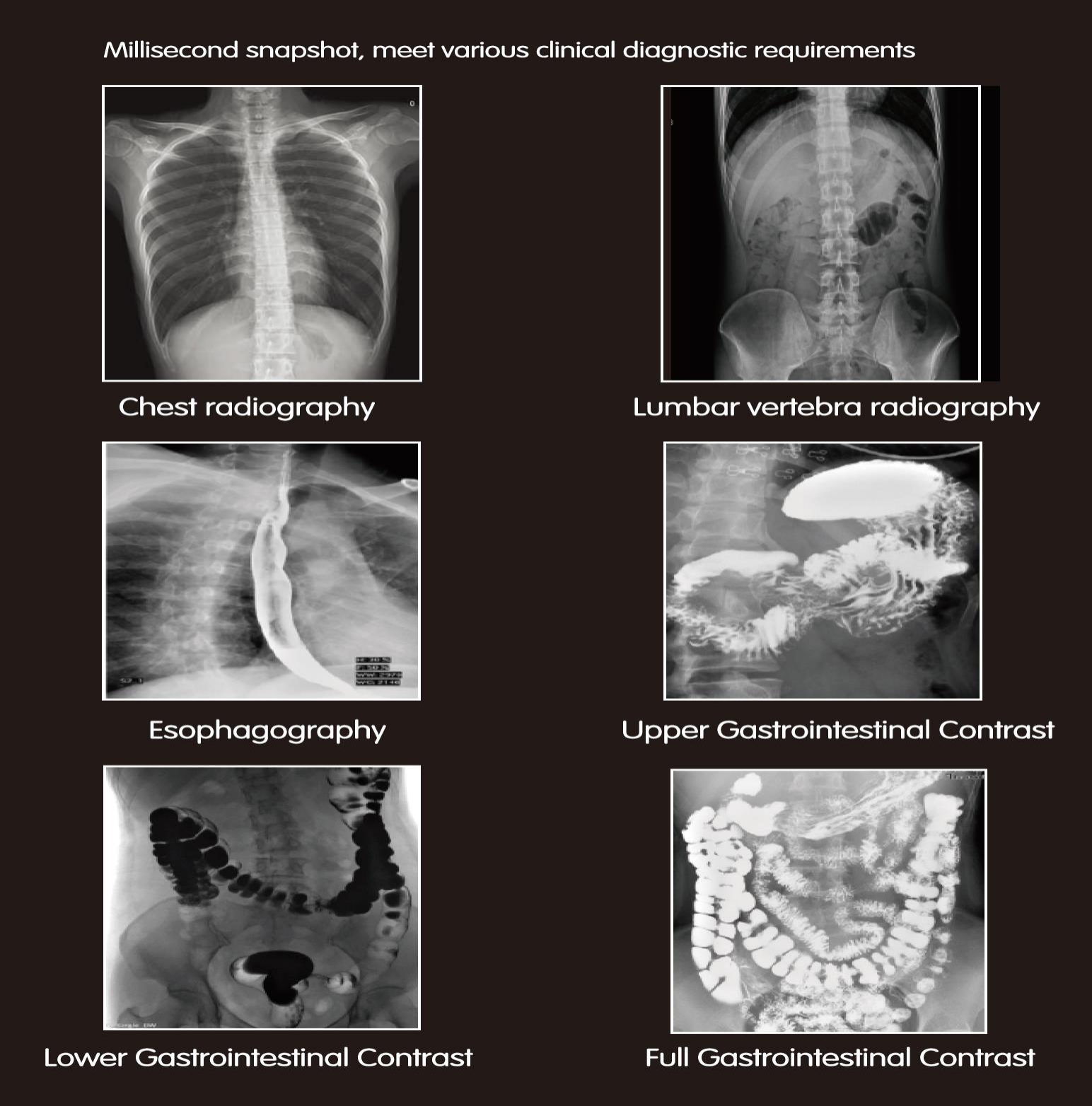

Clinical Applications
Gastrointestinal Fluoroscopy
This dynamic digital radiography system excels at barium swallow studies, barium enema, and GI motility evaluations. The digital x ray system provides real-time visualization with instant high-resolution spot films, combining the best of digital radiography and dynamic digital radiography in one radiography system.
Orthopedic and Sports Medicine
The SYRJ DRF1600 digital x ray system captures weight-bearing studies, joint kinematics, and post-operative evaluations. This radiography system's 30 fps fluoroscopy visualizes joint movement, while high-resolution static digital radiography documents alignment—true dynamic digital radiography capability.
Urological and HSG Procedures
This digital radiography system performs retrograde urethrography, voiding cystourethrography, and hysterosalpingography (HSG). The dynamic digital radiography platform's real-time visualization ensures proper contrast administration, demonstrating the clinical value of this versatile radiography system.
Pediatric Imaging
With pulsed fluoroscopy and low-dose digital radiography protocols, this radiography system minimizes radiation exposure. The digital x ray system's pediatric APR programs automatically optimize parameters for children, making it a safe dynamic digital radiography solution for young patients.
Why SYRJ DRF1600 Digital X Ray System Excels
Unified Radiography System Platform
Eliminates need for separate digital radiography and fluoroscopy rooms. This dynamic digital radiography solution reduces capital expenditure by 40% while maintaining full dual-functionality as a complete digital x ray system.
Eliminates need for separate digital radiography and fluoroscopy rooms. This dynamic digital radiography solution reduces capital expenditure by 40% while maintaining full dual-functionality as a complete digital x ray system.
Superior Digital Radiography Image Quality
This digital x ray system achieves 3.7Lp/mm spatial resolution in static mode and 3.3Lp/mm during fluoroscopy—exceeding many standalone digital radiography and dynamic digital radiography systems.
Dose-Optimized Dynamic Digital Radiography
The digital radiography platform's pulsed fluoroscopy reduces patient dose by 60% compared to continuous exposure. The dynamic digital radiography radiography system includes dose-area-product (DAP) tracking for comprehensive dose management.
Future-Ready Digital X Ray System Architecture
This digital radiography imaging system's software-upgradeable platform accommodates evolving digital radiography protocols. The dynamic digital radiography hardware supports future feature enhancements, protecting your radiography system investment.
FAQ
Q: How does this digital x ray system differ from standard digital radiography machines?
A: Unlike conventional digital radiography equipment, the SYRJ DRF1600 dynamic digital radiography system provides real-time fluoroscopy AND high-resolution static imaging in one unified radiography system, eliminating the need for separate digital radiography and dynamic digital radiography units.
Q: Can this radiography system replace dedicated fluoroscopy units?
A: This digital x ray system handles 90% of fluoroscopic procedures including GI studies, HSG, and orthopedic evaluations. For complex interventional work, a dedicated cardiac/vascular system may supplement this dynamic digital radiography platform.
Q: What is the patient dose compared to conventional fluoroscopy systems?
A: This dynamic digital radiography system's pulsed fluoroscopy and last-image-hold technology reduce dose by 40-60% compared to traditional continuous fluoroscopy while maintaining diagnostic digital x ray system quality.
